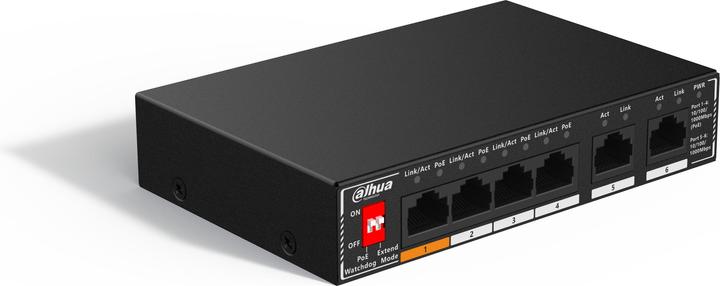

Dahua Switch It Dh-Sg1006p 6-Port Unmanaged Desktop Gigabit Switch 4-Port Poe

DH-SG1006P is an unmanaged desktop switch with 4 × 10/100/1000 Mbps PoE ports. It provides 4 × 10/100/1000 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). It also supports PoE watchdog to avoid manual maintenance and device restart, enabling intelligent management and reducing costs.

Intelligent PoE provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. It supports ultra-wide power supplies and is able to adapt to IPC power fluctuations.

Hi-PoE 60W (Orange Port) supports a maximum power output of 60W for powering high-power devices, in addition to the IEEE802.3af and IEEE802.3at standards.

PoE Watchdog adopts innovative technology that can be activated via a dial or through the web interface. It enables the switch to automatically detect port status and restart failed ports to recover connections in case of IPC connection exceptions. This feature facilitates intelligent operation and maintenance management, effectively reducing manual maintenance costs.

Long Distance PoE allows for a transmission distance of up to 250 m by enabling long-range transmission on the web interface, meeting the requirements of wired transmission (bandwidth reduced to 10 Mbps).

8-pin Assignment PoE Power Supply supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power simultaneously, enhancing compatibility with IPC, reducing cable loss, and increasing loading capacity.
