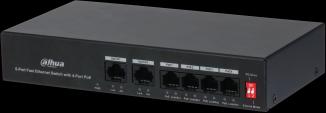

Dahua PoE DH-PFS3006-4ET-36 network switch Fast Ethernet (10/100) Power over Ethernet

Due to its reliability and high transmission quality, the 4-Port Desktop Switch PoE PFS3006-4ET-36 10/100 Mbit/s is an excellent solution for expanding a home or office network. Four of the ports support Power over Ethernet (PoE) functionality. Note! Activating the Extend function reduces the PoE range by up to 250 m and the transmission speed by up to 10 Mbit/s.

LAN Ports: 2 x RJ45 10/100 Base-TX – Uplink, 4 x RJ45 10/100 Base-TX (4 x PoE (802.3af/at)). Management via WWW/Console: – LEDs: Power, Link/Act, PoE Transmission Speed: 10/100 Mbit/s: 2 LAN Ports + 4 LAN and PoE Ports. Maximum Output Power: 30 W / PoE Port. Maximum Total Power: 36 W. MAC Address Table: 2k. Operating Mode: Extend On: 250 m, 10 Mbit/s. Extend Off: 100 m, 100 Mbit/s.

Main Features: Power Supply Mode PoE: The device serves an 8-pin power supply. EXTEND Mode – Ports PoE1, PoE2, PoE3, PoE4 support transmissions up to 250 m. Watchdog PoE/PD Alive Mode – Ports monitor the power supply of PoE devices and automatically reconnect after power loss, detecting a non-responsive device. Protection against atmospheric discharges and potential differences between devices. Kensington lock.

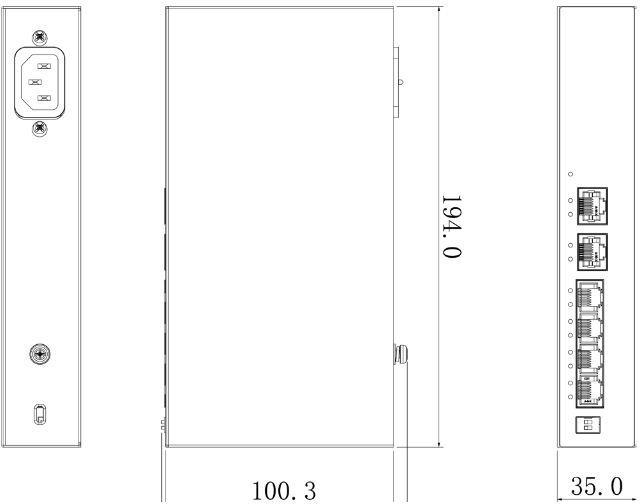

Certificates: CE, FCC. Power Supply: 100 V ... 240 V AC. Operating Temperature: -10 °C ... 55 °C. Weight: 0.56 kg. Dimensions: 194 x 108 x 35 mm. Manufacturer / Brand: DAHUA. Warranty: 3 years. User Manual DE.
