Dahua Enkelt-port langdistance Ethernet over Coax Forlaenger,LR1002-1EC-V2(Receiver)

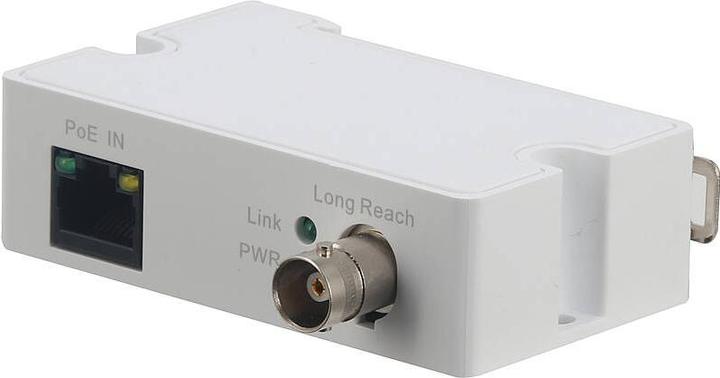

Dahua LR1002-1EC EoC Receiver / Active Converter

It is designed to function as a type of converter from RJ45 to BNC port, supporting the transmission of power over long distances via coaxial cables. It features a coaxial BNC port and an RJ45 port. The product is equipped with two transmission modes, which are 100 Mbit/s and 10 Mbit/s. It can be adjusted according to the transmission distance.

• 1x Receiver
• Supports IEEE802.3, IEEE802.3u, EEE802.3af, IEEE802.3at
• 1x RJ45 connector, 1x BNC connection

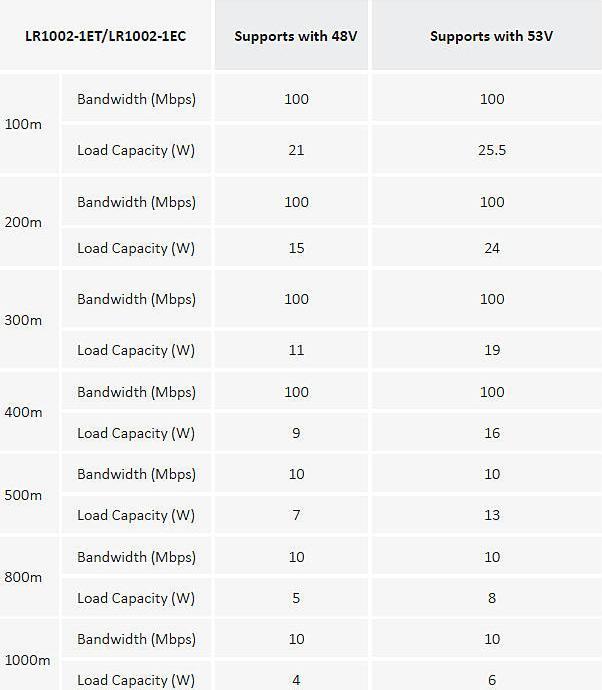

• Supports RG59 coaxial cable: 400m / 100Mbps; 1000m / 10Mbps
• Supports MDI/MDIX auto-sensing
• Supports power transmission over long distances via coaxial cables

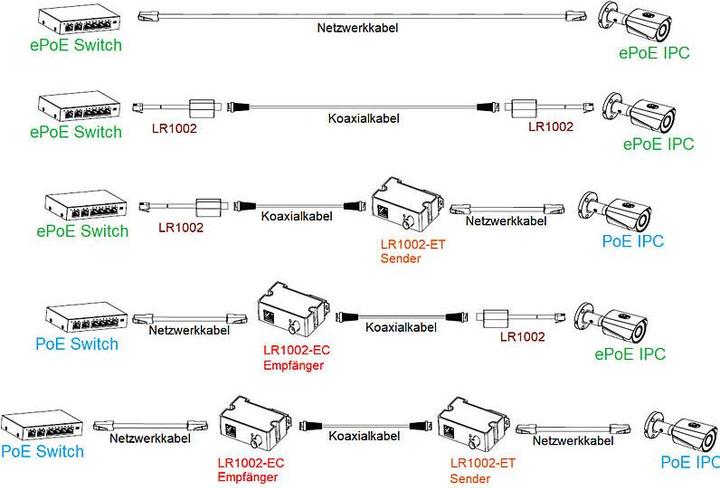

• Consider combination options

Note:

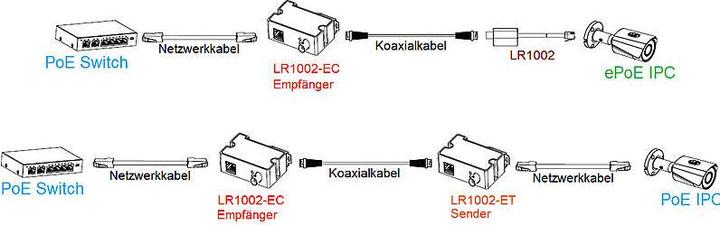

• Requires PoE switch and LR1002 for ePoE camera.
• Requires PoE switch and LR1002-ET transmitter for PoE camera.
