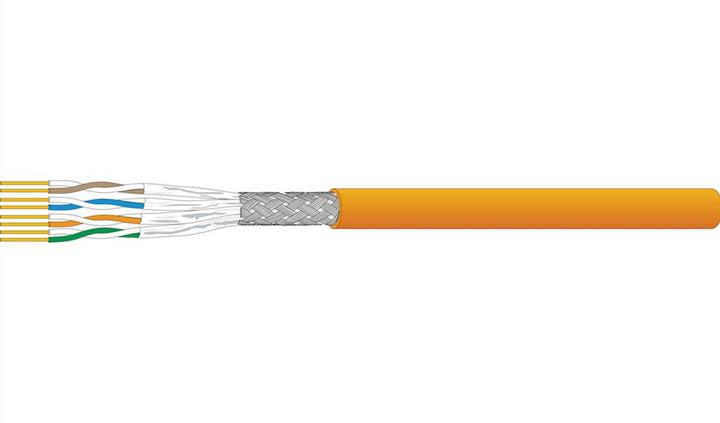

Dätwyler Installation cable Uninet 7150 S/FTP (PiMF) 4P, LSOH, Cat.7 (Class F), orange, 100m

PiMF, CAT7, 100 m
CHF2.58/1m
Ratings
Delivered between Fri, 11.7. and Tue, 15.7.
Only 2 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

Cu data cable up to 1500 MHz 4x2xAWG22 for structured building cabling in accordance with EN 50173-1:2002, ISO/IEC 11801:2002-9. Optimized for the transmission of broadband image signals, such as analogue and digital TV signals. Specially suitable for all FS/FTP class applications. Foil stranding with the pairs to the Pimf (pair in metal foil), with a foil overlap of at least 10% due to special manufacturing technology. Compatible with all common connector systems in accordance with EN 50173-1:2002 and ISO/IEC 11801:2002-9. Guaranteed limit values in accordance with Cat.7 ISO/IEC 11801:2002-9, EN 50173-1:2002, EN 50288-4-1.

Sheath FRNC/LS0H, color orange RAL2003. Tensile strength: ≤ 130 N. Transverse compressive strength: ≤ 1000 N/10cm. Fire load 0.20 kWh/m, 0.72 MJ/m. Self-extinguishing according to DIN VDE 0482-265, IEC60332-1. Halogen-free according to DIN VDE 0482-267. Minimal smoke development according to DIN VDE 0842-268. Low fire propagation according to DIN VDE 0472-804C, IEC60332-3 cat. C. Metrics and production batch number on cable sheath. Outer diameter max. 7.8 mm. Average characteristic impedance: 100V 6 5V. NVP: approx. 81%. Signal delay difference (skew): max. 2 ns / 100 m. Bending radius: when pulling in ≥ 64 mm, fixed installation ≥ 32 mm.

Performance data:
Frequency | Attenuation | Next Return loss
100 MHz | 16.2 dB | 103.0 dB | 33.0 dB
155 MHz | 20.2 dB | 103.0 dB | 30.0 dB
300 MHz | 28.0 dB | 100.0 dB | 27.0 dB
600 MHz | 40.0 dB | 96.0 dB | 25.0 dB
862 MHz | 49.0 dB | 92.0 dB | 24.0 dB
1200 MHz | 58.0 dB | 85.0 dB | 23.0 dB
1500 MHz | 68.0 dB | 80.0 dB | 20.0 dB

Technical data:
Manufacturer: Dätwyler
Product group: Twisted pair cable
Product type: Installation cable
Color: orange
Content: 1 m
Shielding type: PiMF
Transmission quality: Cat7 / Class F
Impedance: 100 Ohm
Core cross-section (AWG): AWG 22
Core type: Solid wire
Bending radius: >64mm when installed, >32mm
Outer Ø cable: 7.8 mm
Cable LSOH: yes
Package weight: 6.5 kg
Gross weight: 6.5 kg.

Key specifications

Item number
46152522

General information

Manufacturer
Dätwyler
Category
Network cables
Manufacturer no.
182 925
Release date
26.5.2024

Colour

Cable colour
Orange

Cable properties

American Wire Gauge (AWG)
22
Frequency
1000 MHz
Impedance
100 Ohm

Twisted-pair cable properties

Cable category
CAT7
Shield
PiMF

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
1 m

Product dimensions

Diameter
7.80 mm
Length
100 m
Width
400 mm
Depth
400 mm
Weight
6500 g
