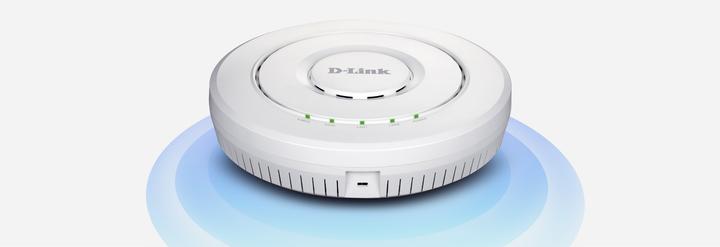

D-Link WLAN access points

2402 Mbit/s
Delivered between 14.1.2026 and 24.1.2026
free shipping

Product details

Wireless AX3600 Unified Access Point - 802.11ax (WiFi 6) simultaneous dual-band unified access point - 4x4 80MHz, AX3600 2402Mbps + 1147Mbps (1024QAM). Internal antennas: 2.4 GHz: 3dBi omnidirectional, 5GHz: 4dBi omnidirectional. 2.5G + 1G uplink ports for upcoming 802.11ax clients. Link aggregation (802.3ad). Housing with plenum rating and UL-2043 certification. ZeroWait DFS. Operates with 802.3at PoE. MU-MIMO for both downlink and uplink can serve multiple clients simultaneously and utilize the spectrum more efficiently. OFDMA, the most significant technical improvement of 11ax, divides the available channel bandwidth into multiple subcarriers or RUs (resource units) and increases overall efficiency in low-bandwidth applications in dense environments. The high-power design allows for greater range, covering more area with fewer devices. Wall/ceiling mountable. Wi-Fi standard: Simultaneous 802.11a/n/ac/ax and 802.11b/g/n/ac. Frequencies: 2.4 GHz or 5 GHz. Max. bandwidth: 3600 Mbps. Number/type of antennas: 4x4 integrated, omnidirectional antennas. PoE: 802.3at. LAN connection: 1x 10/100/1000BASE-T port, 1x 10/100/1000/2500 BASE-T LAN port. Protection class: - Max. number of SSIDs: 32.

Key specifications

Area of application
Business
Operating modes
Access point
Wi-Fi standard
Wi-Fi 6 / 802.11ax
PoE Standard
802.3at (PoE+)
Wi-Fi frequency band
Dual band
Max. port speed
2500 Mbit/s
Number of RJ45/LAN ports
2
Item number
14859189

General information

Manufacturer
D-Link
Category
Access points
Manufacturer no.
DWL-X8630AP
Release date
23.2.2021

Access point properties

Operating modes
Access point
Number of antennas
4 x
Antenna gain
4 dB
Number of RJ45/LAN ports
2
Max. port speed
2500 Mbit/s
Protection type (IP code)
IP20
Access Point Functions
PoE capableSeamless roaming

Wi-Fi standard

Wi-Fi standard
Wi-Fi 6 / 802.11ax
5 GHz transfer rate
2402 Mbit/s
Wi-Fi frequency band
Dual band
Wi-Fi encryption
WPA3

Application range

Area of application
Business
Installation place
CeilingWall

Power supply

Power supply
PoE
PoE Standard
802.3at (PoE+)
Power consumption
19.98 W

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
22 cm
Width
22 cm
Height
4.70 cm
Weight
868 g

Package dimensions

Length
30 cm
Width
30 cm
Height
9 cm
Weight
1.50 kg

30-day right of return
24 Months Warranty (Bring-in)
