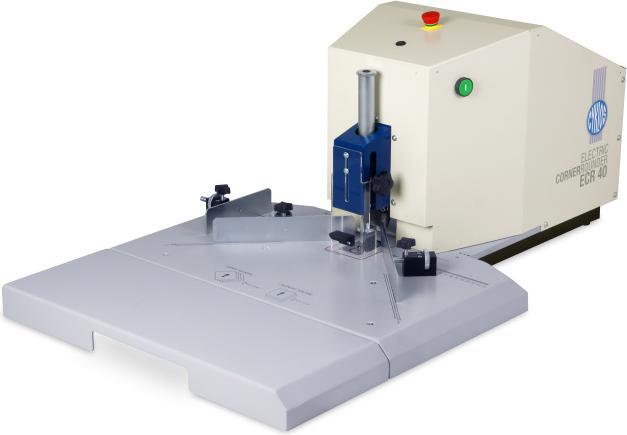

Cyklos ECR 40 electric corner rounder / thumb hole punch

Cyklos ECR 40 Electric Corner Rounder / Thumb Hole Punch

The electric corner rounder Cyklos ECR 40 has a capacity of 40 mm for corner rounding and 10 mm for thumb holes. This new model is based on the successful manual model CCR 40. The ECR 40 can be equipped with a variety of interchangeable cutting tools, including a tool for thumb hole punching, which is particularly used in calendar production.

The corner rounder transforms ordinary, square papers into beautiful, professionally looking documents with smooth, rounded corners. It is ideal for business cards, playing cards, brochures, and more. Additionally, it easily cuts lightweight metal, PVC, cardboard, polyester, and leather. Tools are available for radii of 4, 6, 9, 12, and 18 mm, a straight knife of 28 mm (for 45-degree punches), as well as the tool for thumb holes.

• Heavy metal construction
• Easily interchangeable punching tools
• Continuously adjustable paper stops for absolute punching accuracy
• Large work table and waste drawer
• Spring clamping device
• Safety release via 2 buttons

TECHNICAL DATA ECR-40

• Working width: 520 mm
• Punching height: 40 mm (corner rounding) / 10 mm (thumb hole)
• Format min. / max.: 85 x 55 mm / SRA 3
• Max. calendar width: 500 mm
• Loading capacity: 50 mm
• Machine weight: 54 kg
• Machine dimensions: 570 x 965 x 385 mm (W x D x H)
• Power connection: 230 volts

Delivery does not include tools. Please specify desired tools when ordering. Tool price CHF 375.00 / thumb hole tool CHF 465.00.
