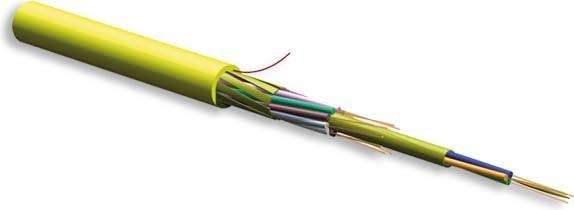

Corning J-V(ZN)H

Corning K&L J-V(ZN)H 12F E9 0.9 TB3 012E8Z-32125E2G-Cca
Manufacturer: Corning K&L
Designation: J-V(ZN)H 12F E9 0.9 TB3
Multifibre Indoor Type: 012E8Z-32125E2G-Cca
Number of fibres: 12
Core type: Solid core
Number of fibres per core: 12
Fibre type: Singlemode 9/125
Category: OS2
With strain relief: Yes
Reinforcement: No
Jacket colour: Yellow
Cable longitudinally watertight: No
Cable transversely watertight: No
Cable metal-free: Yes
Fire behaviour class according to EN 13501-6: Cca
Smoke emission class according to EN 13501-6: s1a
Dripping behaviour class according to EN 13501-6: d1
Acid emission class according to EN 13501-6: a1
Flame retardant: According to IEC/EN 60332-3-24
Functional integrity: Without
Low smoke according to EN 61034-2: Yes
Outer diameter approx.: 6.2 mm

Corning LANscape® indoor cables can be used indoors as riser area cabling and as distribution cables. The design with fixed conductors allows easy and direct connector panel installation without splitting adapters. The cables can be installed in cable ducts and cable shafts inside buildings. The metal-free cable construction does not require potential equalisation and requires equipotential bonding. The small cable diameter and bending radius allow for easy installation in limited space. The TB3 fixed core construction ensures easy and uniform removability. The cables have a silicone-free outer sheath, and the cable sheath and the outer sheath of the basic elements (except 900µm fixed cores) are free of paint-wetting substances.
