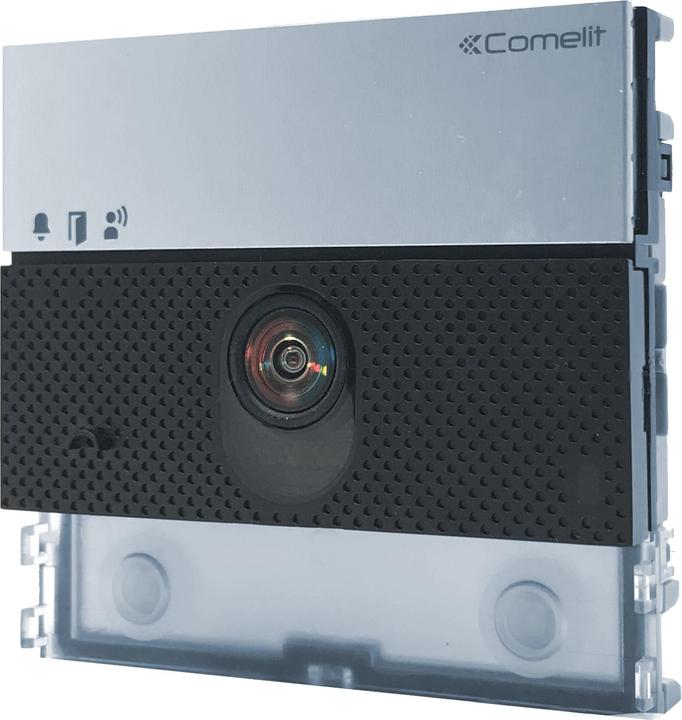

Comelit UT8020 Speaker Module UltraVideo Handycap Function ViP

Comelit Group loudspeaker module UT8020

Manufacturer: Comelit Group
Designation: Loudspeaker module Ultra Video
Type: UT8020
Version: Video module
Reading method biometric: No
Reading method code: No
Reading method data carrier: No
Installation technology: Network technology
Type of input voltage: DC
Operating voltage: 36 V
Power over Ethernet (PoE): 802.3 af (PoE)
Flush mounting: Yes
Surface mounting: Yes
With housing: No
Material of housing: Aluminium
Number of call/bell buttons: 2
Contains keypad: No
Number of users: 2
With day/night function: Yes
Opening angle camera: 160°
Function PTZ (pan/tilt/zoom): No
Manually adjustable camera: No
Picture system: PAL
Feature picture system: Colour
Hearing aid compatible: No
Colour: Aluminium
Width: 100 mm
Height: 90 mm
Depth: 35 mm

Comelit Group loudspeaker module UT8020: more details
Loudspeaker module video for Ultra door station, system VIP. For use in systems with PoE switch. Easy to install and simple to configure thanks to intelligent call button programming. Twilight sensor for automatic switch-off of backlighting of nameplates in daylight. Omni-directional digital microphone and two loudspeakers for hi-fi audio. Wide-angle colour camera (field of view: 160° horizontal, 100° vertical). Additional visual and acoustic displays for the handicapped, adjustable in the programming. Prepared for 2 call buttons. To be completed with blind cover, single or double buttons in polymethyl methacrylate with anti-yellowing and matting coating or in aluminium. Settings and programming from the front, without removing the module. Dimensions: 100x90x35 mm.
