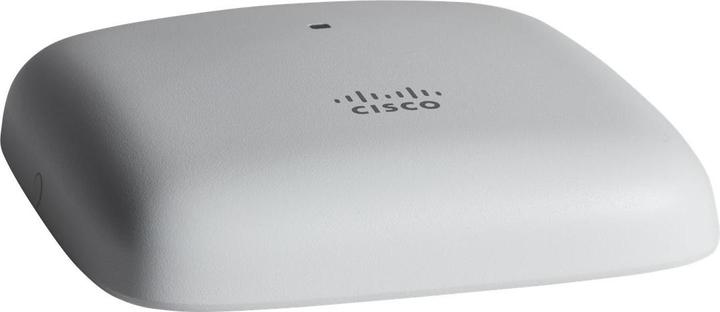

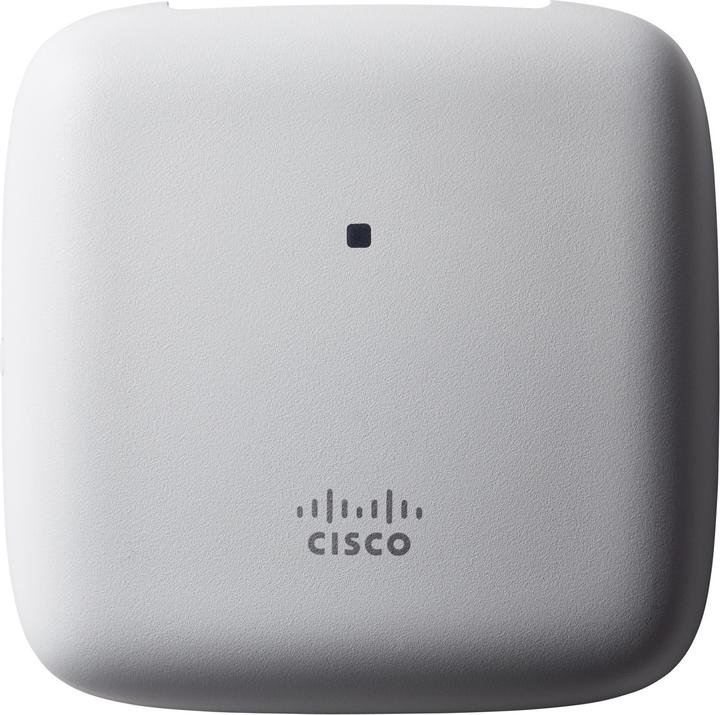

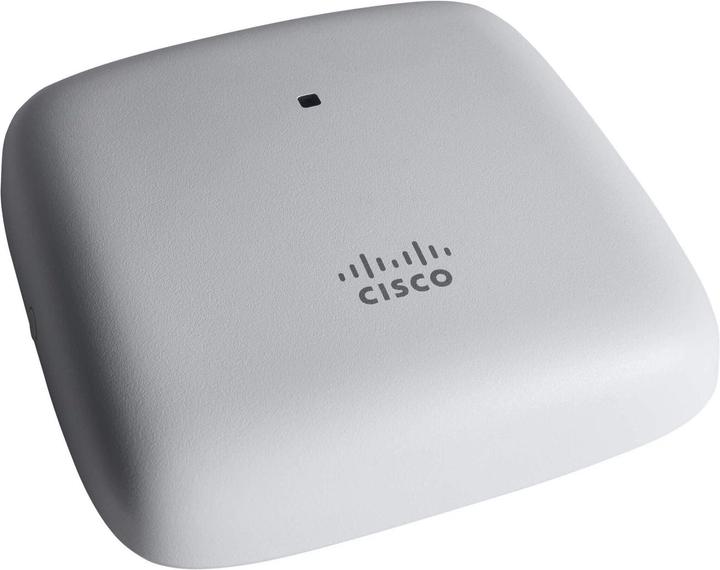

Cisco Access Point CBW140AC-E

867 Mbit/s
Delivered between Tue, 7.4. and Wed, 8.4.
5 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

Ceiling Access Point with PoE. WLAN Standard: IEEE 802.11ac (Wi-Fi 5), IEEE 802.11n (Wi-Fi 4). Data transfer rates of up to 300 Mbit/s on 2.4 GHz and 867 Mbit/s on 5 GHz. Features: Access Point, Bridge, Guest WLAN, PoE, RADIUS, VLAN, Wave 2. Installation: Ceiling. Multi-User Multiple Input Multiple Output (MU-MIMO). As part of the Wave 2 advancement of the 802.11ac standard, the Multi-User MIMO technology has been introduced. By utilizing Multi-User MIMO, this device can stream data to multiple devices simultaneously. This allows your WLAN network to deliver faster throughput to each connected client, resulting in quicker downloads and lag-free streaming for your devices. The WLAN standard 802.11ac offers you up to twice the data throughput compared to older standards. This improvement is achieved by widening the transmission bandwidth. Additionally, with 802.11ac, the number of parallel data streams (Multiple Input Multiple Output, MIMO) can be increased to up to eight MIMO streams, while the 802.11n standard defines a maximum of four MIMO streams. Large data volumes, such as videos and backups, are also not a problem with this WLAN speed. Easy installation thanks to PoE. This network-capable device is powered via Power over Ethernet (PoE) through the LAN cable. The main advantage of PoE is that you do not need a power supply cable. This allows you to install Ethernet-connected devices in hard-to-reach places or in areas where many cables would be disruptive. You save installation costs and can increase the reliability of connected devices by using a central uninterruptible power supply if desired.

Key specifications

Operating modes
Access pointBridge
Number of RJ45/LAN ports
1
Max. port speed
1000 Mbit/s
Wi-Fi standard
Wi-Fi 5 / 802.11ac
Wi-Fi frequency band
Dual band
Area of application
BusinessHome
PoE Standard
802.3af (PoE)

General information

Item number
13597155
Manufacturer
Cisco
Category
Access points
Manufacturer no.
CBW140AC-E
Release date
18.8.2020
Sales rank in Category Access points
119 of 1555

Access point properties

Operating modes
Access pointBridge
Max. number of clients
400x
Number of antennas
2x
Antenna gain
4 dB

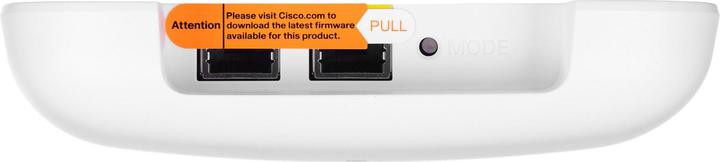

Number of RJ45/LAN ports
1
Max. port speed
1000 Mbit/s
Access Point Functions
Guest accessPoE capable

Wi-Fi standard

Wi-Fi standard
Wi-Fi 5 / 802.11ac
5 GHz transfer rate
867 Mbit/s
2.4 GHz transfer rate
300 Mbit/s
Wi-Fi frequency band
Dual band
Wi-Fi encryption
WPAWPA2WPA3

Application range

Area of application
BusinessHome
Installation place
CeilingWall

Power supply

Power supply
PoE
PoE Standard
802.3af (PoE)
Power consumption
8.30 W

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
108.79 kg
Climate contribution
CHF 2.59

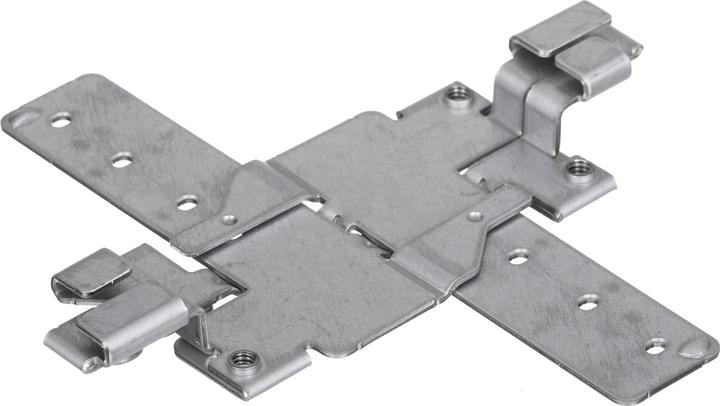

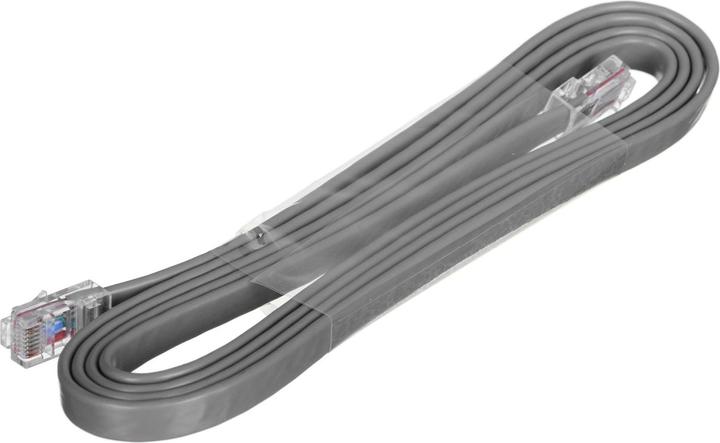

Scope of delivery

Scope of delivery
1 piece11 piece128 piece(s)31 piece(s)

Product dimensions

Length
15.08 cm
Width
15.08 cm
Height
3.30 cm
Weight
373 g

Package dimensions

Length
22 cm
Width
24 cm
Height
8 cm
Weight
948 g

30-day right of return
24 Months Warranty (Bring-in)
