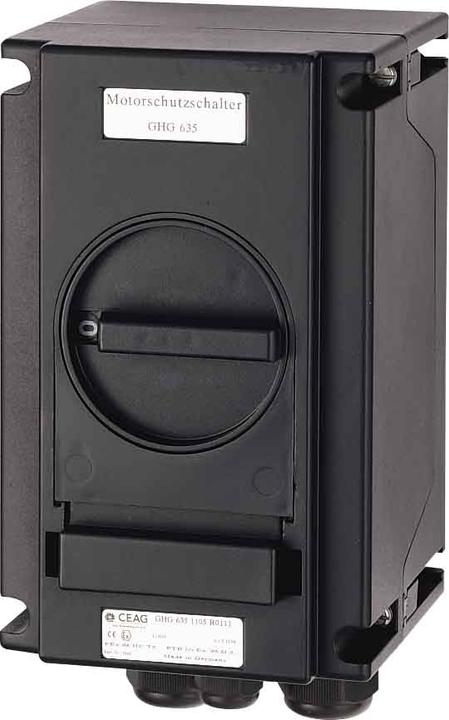

Ceag Motor starter,4.0-6.3A FLC range

Ratings
BrandMore from Ceag
Delivered between Thu, 3.7. and Sat, 19.7.

Product details

Motor starter type = Direct starter
Operating voltage = 690 V ac
Protection class = IP66
Motor starter mode of operation = Manual
Total length = 225mm
Housing = Yes
Total width = 140mm
Total depth = 156mm
Hazardous area approval = ATEX

II 2 G EEx de II C T S or T6. PTB 99 ATEX 1162. Short-circuit protection up to 100kA and maximum back-up see 'key characteristics' table. Motor starter. Single-phase failure via thermal electromagnetic trips are featured in these circuit breakers/manual motor starters. The respective switch position is clearly indicated by the switch handle. Terminals are protected against accidental contact. They have a terminal cross section of up to 10mm² for the connection of single or multi-wire conductors. The external contours of the enclosure allow easy access to the connection terminals and easy installation. Connection terminals accessible from all sides IP66 to EN60529 rating Isolating properties to DIN EN 60947-3 690Vac upto 25A rating Single phase failure protection Padlocking facility via red button Clear indication of switch position 268mm x 140mm x 150mm (H/W/D).

Key specifications

Length
156 mm
Width
140 mm
number of poles
5
Item number
9942505

General information

Manufacturer
Ceag
Category
Residual-current device
Manufacturer no.
GHG6351101R0109
Release date
22.10.2018
External links
Manufacturer's site (de)

Circuit Breaker Features

number of poles
5
Tripping characteristic
Sluggish ---
Rated voltage
400 V
Rated insulation voltage Ui
400 V
Protection type (IP code)
IP66

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
156 mm
Width
140 mm
Height
225 mm
