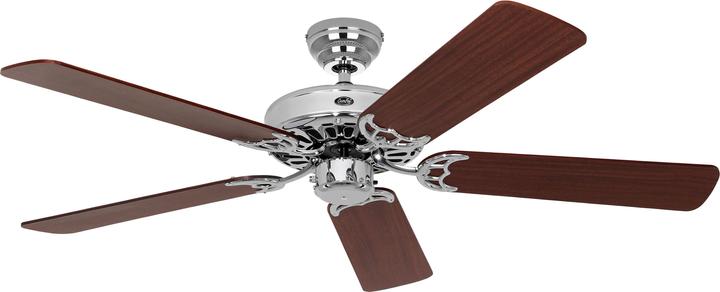

Product details
Dimensions and technical data
- 220-240 V ~ 50 Hz
- Diameter: 132 cm
- Housing colour: glossy chrome
- Wing colour: mahogany
- Motor power consumption: 27.2 / 46.1 / 64 W
- Revolutions per minute: 99 / 164 / 180
- max. air flow rate: 148.7 m³/min
- Service ratio: 2.3 (m³/min)/W
- max. sound pressure level Lp-3m: 30.9 dB(A)
- max. sound power level Lw: 47.7 dB(A)
- Distance ceiling-wing: 28 cm (21 cm without rod)
- Total height: 30 cm (23 cm without rod)
- Diameter canopy: 13 cm
- max. ceiling slope: 28
- Forward/reverse operation (summer and winter operation) via slide switch on housing
- including pull switch: 3 speeds / off
- Weight: 6.9 kg.
