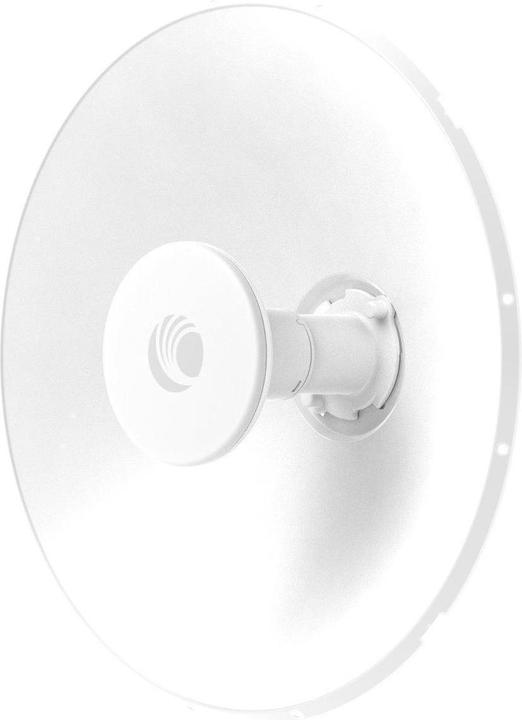

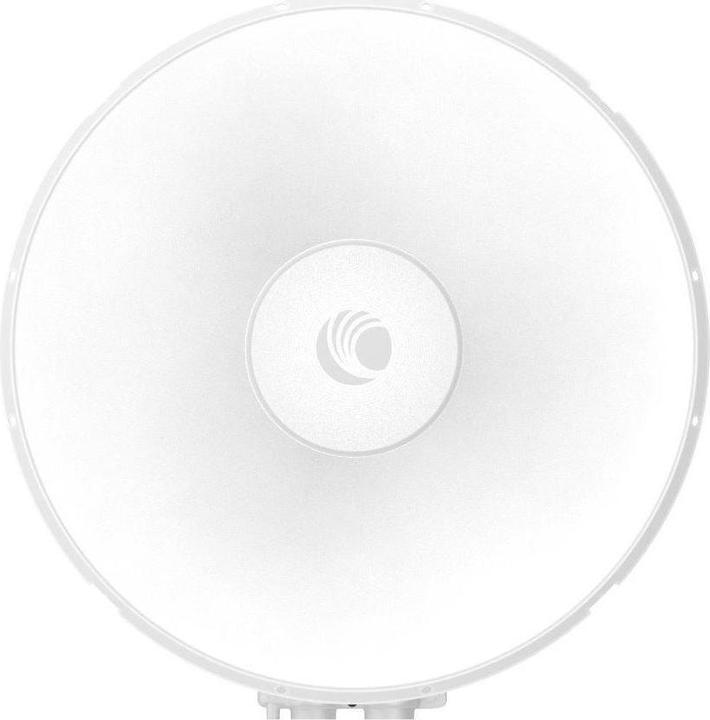

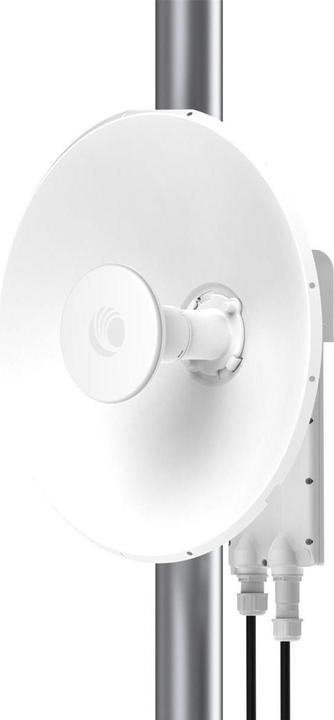

Cambium Networks C060900D021A - ePMP 6 GHz 2x2 parabolic antenna, price per unit (for Force4600C)

The Cambium Networks ePMP 6 GHz 2x2 antenna offers 25 dBi gain when used without a remote extender and up to 28 dBi with one. It operates in the frequency band of 5.1 GHz to 7.1 GHz and is compatible with the Cambium Networks ePMP 6 Force 4600C. With an IP67 rating, the antenna is protected against water and dust. Wind is not an issue for the antenna, withstanding speeds of up to 200 km/h; when using a remote extender, it can handle winds of up to 180 km/h.

Key Features

• 25 dBi gain or 28 dBi with range extender
• Frequency band 5.1 to 7.1 GHz
• Compatibility with Force 4600C

Package Contents

• Device
• Mounting kit for pole diameters of 30-75 mm
• Rear antenna mount for Cambium Networks ePMP 6 Force 4600C

Technical Parameters

Wireless Properties

• F/B Ratio [dB]: 35
• Cross-Pol Isolation [dB]: 35
• Wireless Frequency: 6 GHz
• Azimuth Beamwidth (-6dB) [°]: 7
• Antenna Type: Directional
• Antenna Gain [dBi]: 25

Connectors and Interfaces

• Rocket Kit: Yes

Physical Properties

• Designed for Pole Diameter [mm]: 30 to 75
• Wind Load [km/h]: 200
• Protection Class: IP67
• Intended Use: Outdoor
• Weight [kg]: 5.5
• Width [mm]: 525
• Height [mm]: 590
• Depth [mm]: 280.
