Cambium Networks B-C600500A004A - cnWave V5000 AP, 60GHz - Bazar

The 60 GHz cnWave solution from Cambium Networks offers simple, fast, and cost-effective wireless gigabit connectivity for high-capacity edge access and/or backhaul solutions at significantly lower total operating costs than fiber infrastructure. Service providers and businesses now have access to gigabit connections for commercial and residential use, backhaul for Wi-Fi access, or LTE/5G small cells. The cnWave mesh solutions, certified for Facebook Terragraph, are highly efficient in handling high-density deployments in urban and suburban areas.

Details

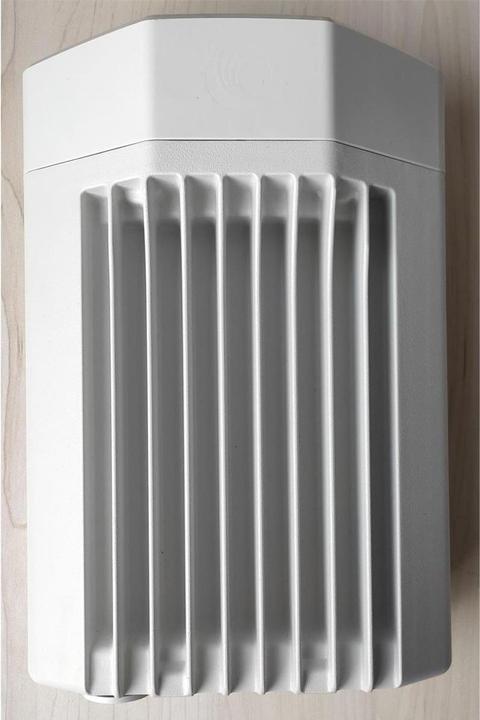

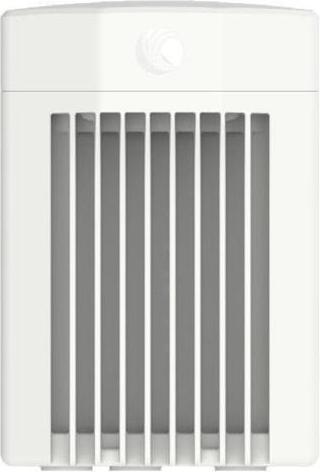

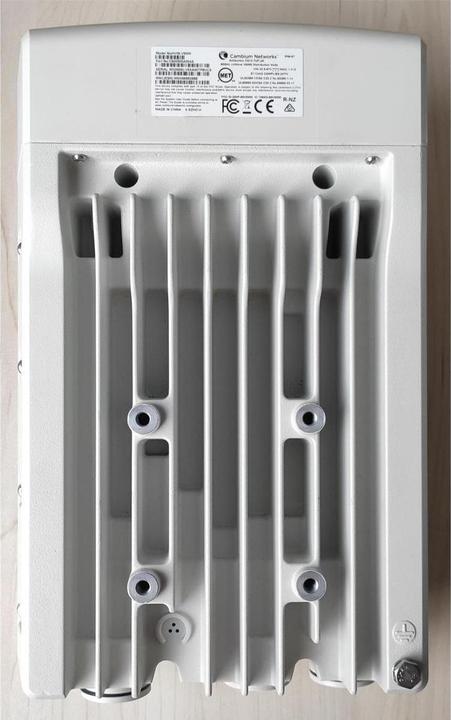

The V5000 is a 60 GHz access point with two sector antennas featuring a radiation pattern of 2x 140° (20° in the vertical direction), an antenna gain of 22.5 dBi, and the capability to connect 4 distribution nodes or up to 30 CPE units. The device has a total of 2 Ethernet ports and one optical SFP+ slot. The first port supports speeds of 100M/1G and 10G, including passive PoE IN 44-57V DC, while the second gigabit port also supports PoE Out with the 802.3at standard, making it particularly suitable for powering cameras. The wireless component supports two bandwidths of 2160 MHz and 4320 MHz (future firmware), with an actual link speed of 7.6 Gbps (3.8 Gbps downlink, 3.8 Gbps uplink), and supports PtMP, mesh, or PTP wireless modes. The maximum power consumption of the device is 35 W, which can increase to 60 W when using PoE Out.

• The device can be managed via the web interface or the cnMaestro Cloud Element Management System for easy deployment, monitoring, and upgrades.
• Network planning with LINKPlanner.

Technical Parameters
Wireless Features

• Channel Bandwidth [MHz]: 2160, 4320
• Transmission Speed - 60 GHz [Mb/s]: 7600, Full Duplex
• Output Power 60 GHz [dBm]: 38 (EIRP)
• Elevation Beamwidth (-6dB) [°]:...
