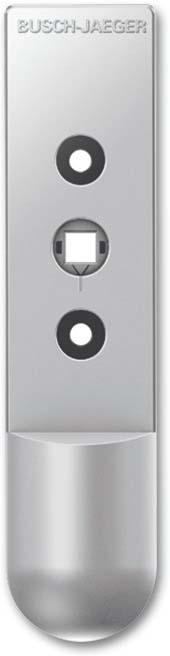

Busch-Jaeger Window detector 6222/1 AP-66-WL

Busch-Jaeger Window Sensor 6222/1 AP-66-WL

Manufacturer: Busch-Jaeger
Description: Wireless Window Sensor, Stainless Steel
Type: 6222/1 AP-66-WL
KNX Bus System: no
KNX Radio Bus System: yes
Radio Bus System: yes
LON Bus System: yes
Powernet Bus System: yes
Other Bus Systems: free@home
Bidirectional Radio: yes
Design: other
Mounting Type: Surface-mounted
With Bus Coupling: yes
Color: Stainless Steel
Protection Class (IP): IP20

The window sensor is used to monitor and transmit the current position of the window handle (window open, closed, tilted). The status can be visualized on the free@home panel and in the free@home app. The window sensor is mounted between the existing window handle and the window frame. The existing window handle is reused.

Suitable for window handles: 7 mm square, 43 mm screw spacing, cam diameter 10 and 12 mm, maximum size of the mounting plate 34 x 77 mm (WxH). No wiring required. Accessories for mounting (square extension, screws, cam adapter) of the window sensor are included in the delivery. Battery included. Battery type: CR2. Low battery notification in the free@home app. Programming via the web interface of the system access point. For more information on commissioning and operation, please refer to the system manual and the online user guide in the current online catalog.

EAN: 4011395232477.
