Busch-Jaeger Thermoel. actuator

Ratings
Delivered between Tue, 24.6. and Tue, 15.7.

Product details

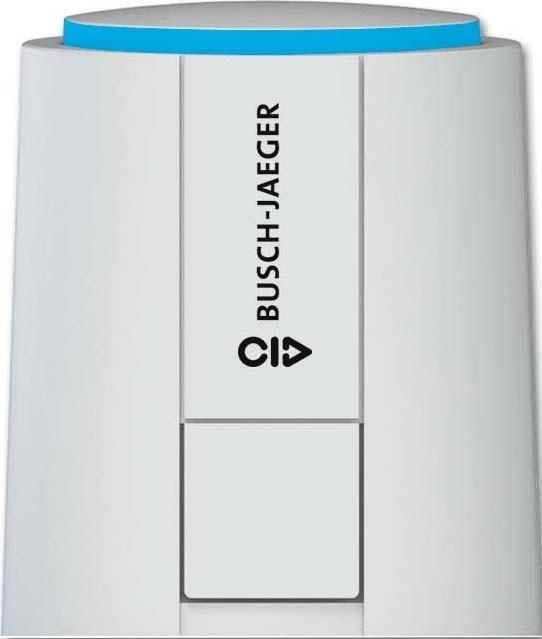

Busch-Jaeger Thermoel. actuator 6164/11-102

Manufacturer: Busch-Jaeger
Designation: Thermoel. actuator, flush-mounted
Actuator UP Type: 6164/11-102
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: Yes
Radio bidirectional: No
Mounting type: Radiator valve
With bus coupling: No
Temperature controller with continuous control built-in: No
Buttons for manual operation on the actuator: No
Temperature and stroke display: Yes
Function master/slave: No
Rated voltage: 24 V
Bus voltage supply: No
Protection class (IP): IP54

Further details:
For controlling heating and cooling ceilings in conjunction with conventional room temperature controllers or KNX, or free@home heating/valve actuators. The heating transformer can be used as power supply. With function indicator (open or closed). Closed without current. Max. opening/closing time: 3.5 min. A suitable valve adapter is required for mounting. Connection cable: 1.0 m (pluggable). Current consumption: 40 mA (approx. 1W). Inrush current: < 300 mA (max. 2 min).

Key specifications

Thermostat type
Actuator
Suitable for
Fan heater, Heating boiler
Smart Home
Not compatible
Power supply
Electrical connection
Items per sales unit
1 Piece
Item number
23119367

General information

Manufacturer
Busch-Jaeger
Category
Thermostats
Manufacturer no.
2CKA006151A0258
Release date
16.11.2022

Colour

Colour
White
Exact colour description
Alpine White

Thermostat properties

Thermostat type
Actuator
Suitable for
Fan heater, Heating boiler
temperature control
Manual

Smart home features

Smart Home
Not compatible
Communication standard
KNX

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Safety

Protection type (IP code)
IP54

Power supply

Power supply
Electrical connection

Battery properties

Voltage
24 V

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
1

Product dimensions

Length
9 cm
Width
8 cm
Height
6 cm
