Busch-Jaeger Room temperature controller

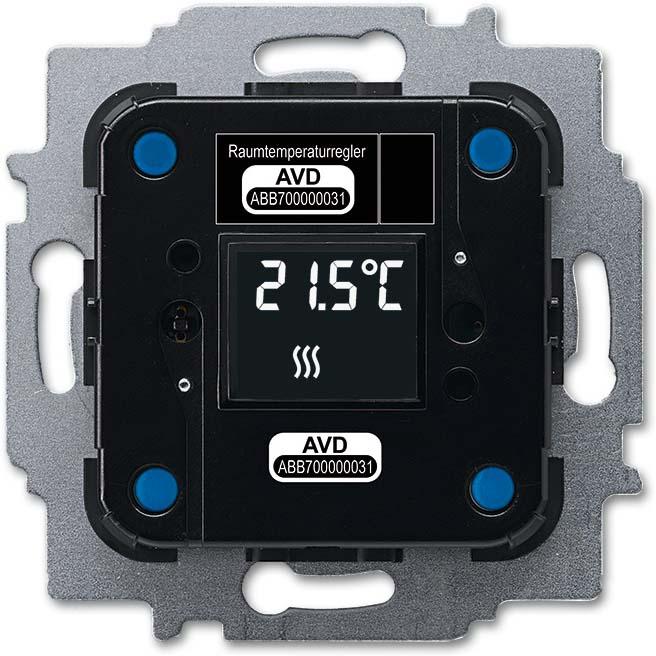

Busch-Jaeger Room Temperature Controller 6224/2.0-WL

Manufacturer: Busch-Jaeger
Description: Wireless Room Temperature Controller
Type: 6224/2.0-WL
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: other
Bidirectional Radio: yes
Composition: Control Element
Mounting Type: Flush-mounted
With Local Control: yes
With LED Display: no
With Display: yes
Material: Plastic
Material Quality: Thermoplastic
External Sensor: yes
Manual Setpoint Adjustment: yes
Protection Class (IP): IP20
With Bus Coupling: no
Minimum Depth of Device Box: 31 mm

The Wireless Room Temperature Controller for Busch-free@home® enables wireless communication with the free@home system. It features a room temperature control function with temperature display for the setpoint. The integrated RTR can optionally be equipped with a remote sensor in conjunction with the temperature sensor 6226/T. It is only usable in combination with Busch-free@home® room temperature controller central plates 6235-xxx. Installation is done using expansion mounting. Programming is carried out via the web interface of the system access point. Further information on commissioning and operation can be found in the system manual and the online user guide.
EAN: 4011395215333.
