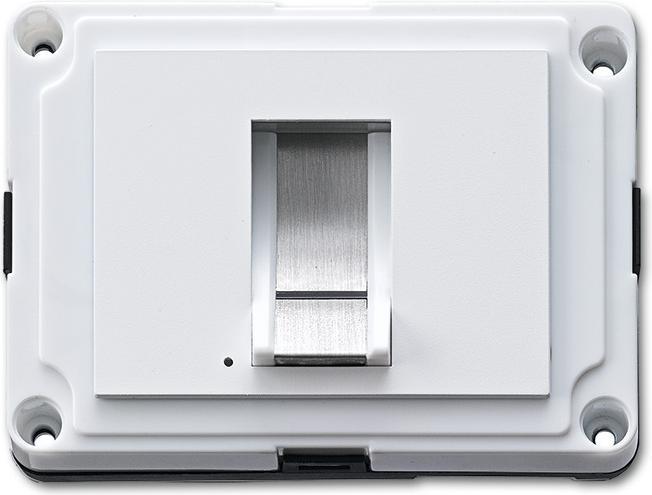

Busch-Jaeger Fingerprint module 83170-664-101

Busch-Jaeger Fingerprint Module 83170-664-101

Manufacturer: Busch-Jaeger
Designation: Fingerprint module studio white matte
Type: 83170-664-101
Execution: Reader
Biometric reading method: yes
Code reading method: no
Data carrier reading method: no
Installation technology: Bus system
Type of input voltage: DC
Operating voltage: 28 V
Flush-mounted installation: yes
Surface-mounted installation: yes
With housing: no
Material of the housing: plastic
Includes keypad: no
Number of users: 64
Camera opening angle: 0°
Hearing aid compatible: no
Color: white
Width: 98 mm
Height: 71 mm
Depth: 29 mm

Busch-Jaeger Fingerprint Module 83170-664-101: further details
Access control module for use in Busch-Welcome® door communication systems or in stand-alone operation. Allows door opening using the fingerprint scanner. Up to 64 users can be enrolled. Designed for installation in a Busch-Welcome® outdoor station. Can be integrated into mailboxes and doorbell systems from various manufacturers. The cutout must be created by the manufacturer. Stand-alone operation together with the system central 83300 (power supply and connection for the electric door opener). Programming can be done directly at the module or via a web browser (requires IP gateway 83342). Power consumption units: 2. Suitable for use with the camera interface (83327) as well as the 180° camera module (83503). EAN: 4011395222966.
