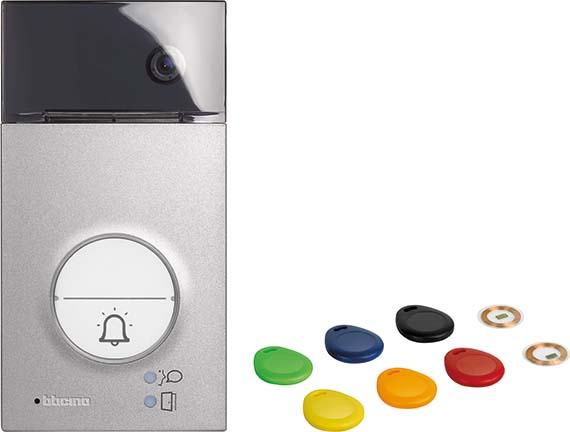

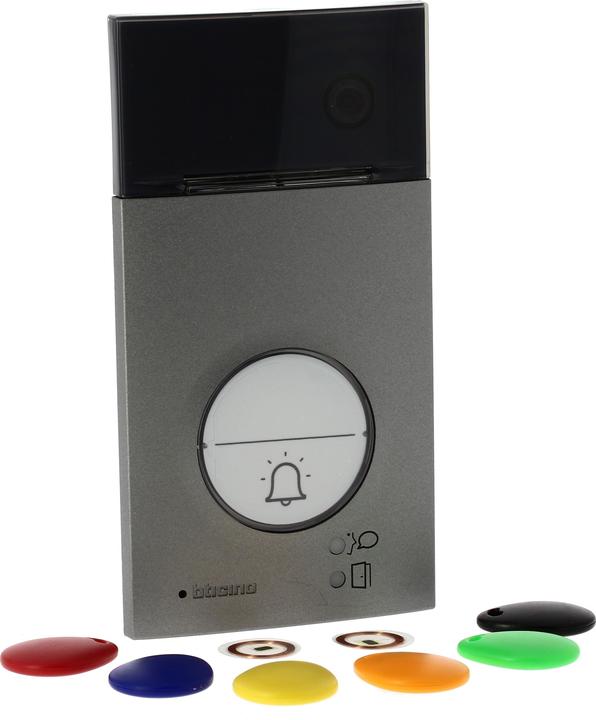

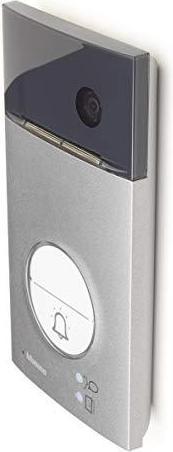

Bticino 2-wire video/audio door station LINEA 3000 with transponder for door opening

2-Wire Video/Audio Door Station Linea 3000 with Transponder for Door Opening, Wide-Angle Color Camera, and LED Lighting for Single or Two-Family Homes. Protection Class IP54, Impact Resistance IK10.

The 2-Wire Door Station Linea 3000 from Bticino is easy to install thanks to modern 2-wire technology. If a doorbell system is already in place, it can be easily replaced, and the old cables can be reused.

The transponder reader allows for keyless door opening. Manage up to 20 transponders (125 kHz) for door opener control. Eight transponders are included in the package.

The door opener (max. 30 Ohm internal resistance) is connected directly to the terminals S+ and S– (18 V, 4 A surge current, 250 mA holding current).

The door station features a wide-angle color camera with white LED camera lighting for improved night vision.

The integrated nameplate is equipped with brightness-controlled backlighting (white LEDs), allowing the door station to be easily operated even in the dark.

The door station comes standard with two call buttons and can be configured as a single or two-family home using a slide switch.

The door station can be installed flush-mounted using a junction box and accessories.

Technical Details: 2-Wire Technology, Transponder Reader, Wide-Angle Color Camera, Illuminated Nameplate, Protection Class IP54, Impact Resistance IK10. Dimensions: W × H × D: 100 × 190 × 26 mm.
