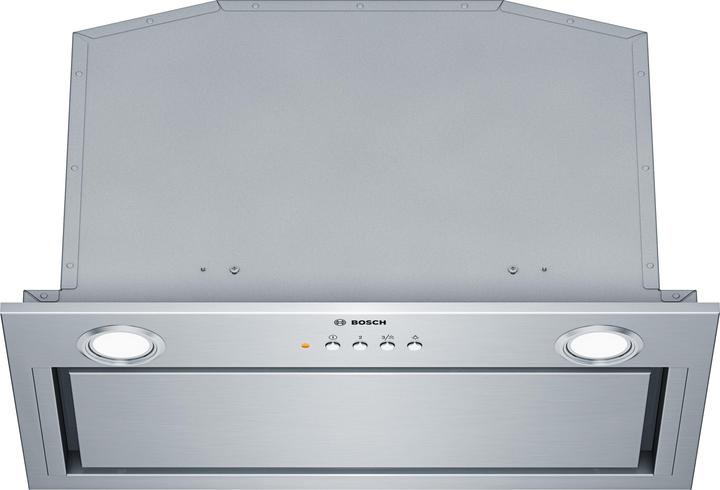

Bosch Hausgeräte Dhl575c

LED Lighting

LED lighting for perfect illumination of the cooking area with extremely low energy consumption. The optimal fan performance for any kitchen size, whether you have an open-plan kitchen or a small closed kitchen. We provide the optimal fan performance for every kitchen type. To ensure a consistent and pleasant indoor climate, the air should be completely exchanged 6 to 12 times per hour. To achieve this, the air flow rate or the performance of the extractor hood must correspond to the room volume.

Metal Grease Filter

Metal grease filters are required for exhaust and recirculation hoods to filter grease and other solids from the incoming air. To maintain high effectiveness, they should be cleaned by hand or in the dishwasher approximately once a month. The metal grease filter is included in the delivery.

Technical Data

Design: Fan module/insert/under-cabinet hood
Approval certificates: CE, EAC-Eurasian, VDE
Length of power cord: 150 cm

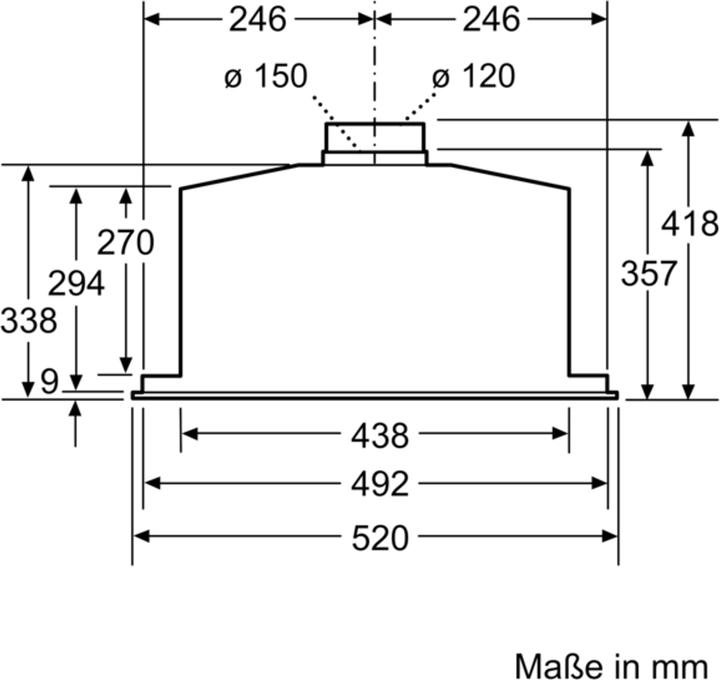

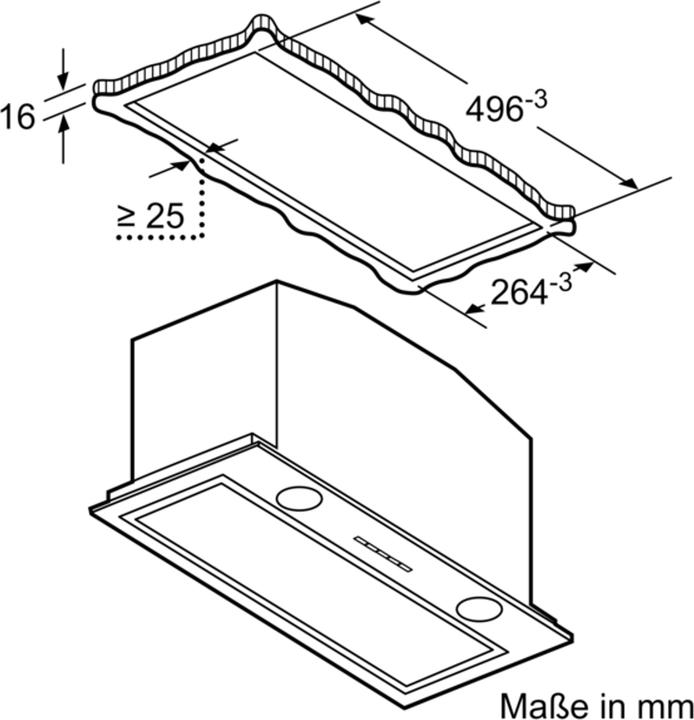

Niche dimensions for installation (H x W x D): 418 mm x 496.0 mm x 264 mm

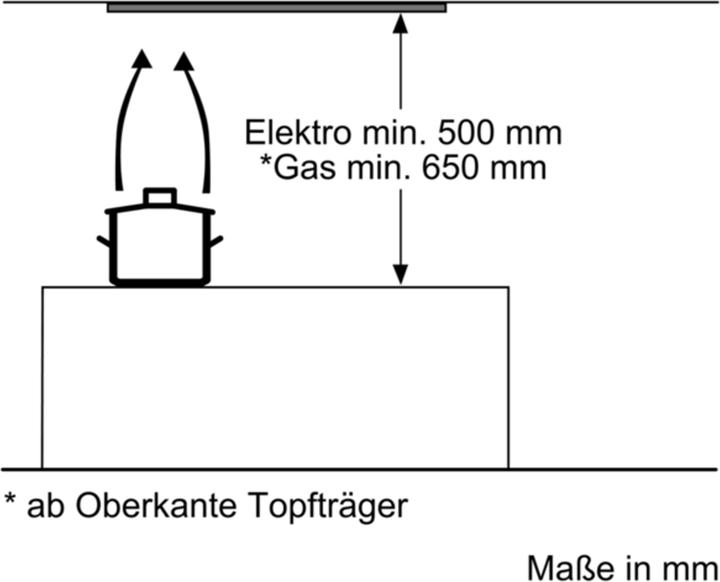

Minimum distance to electric cooking surface: 500 mm
Minimum distance to gas cooking surface: 650 mm
Net weight: 7.9 kg

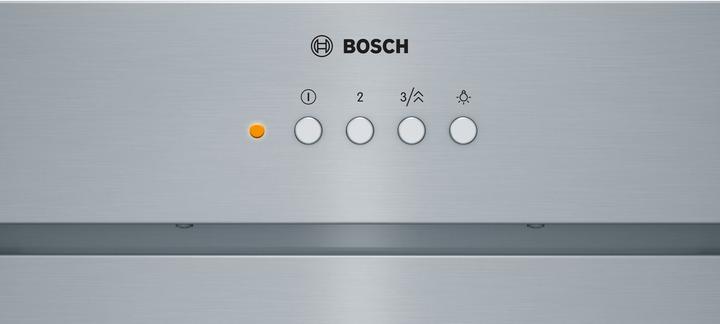

Control: electronic
Max. fan performance in exhaust mode: 560 m³/h
Fan performance at intensive level in recirculation mode: 581 m³/h
Max. fan performance in recirculation mode: 533 m³/h
Fan performance at intensive level in exhaust mode: 615 m³/h
Number of lamps (pieces): 2
Sound power: 67 dB(A) re 1 pW
Diameter of exhaust duct: 150 / 120 mm
Material of grease filter: washable aluminum
Power rating: 252 W
Fuse: 3 A
Voltage: 220-240 V
Frequency: 50 Hz
Type of plug: Schuko/Gardy with grounding
Installation type: Built-in.
