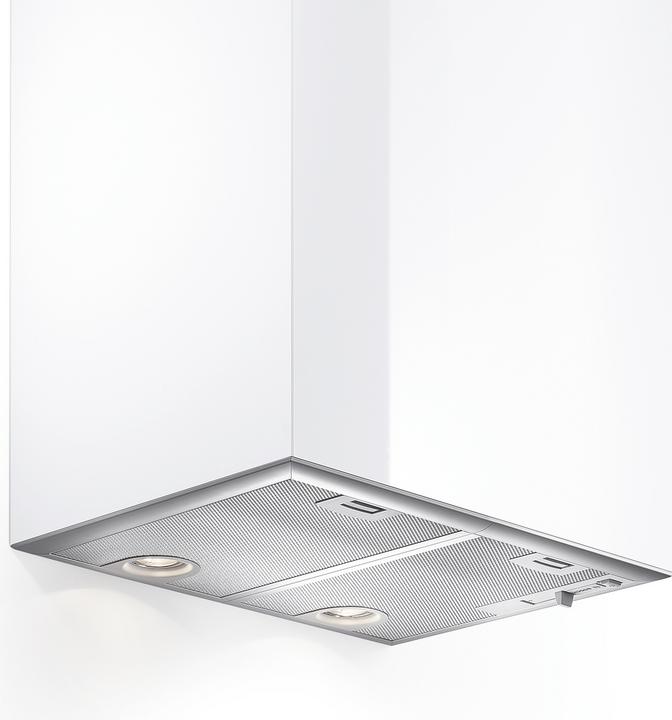

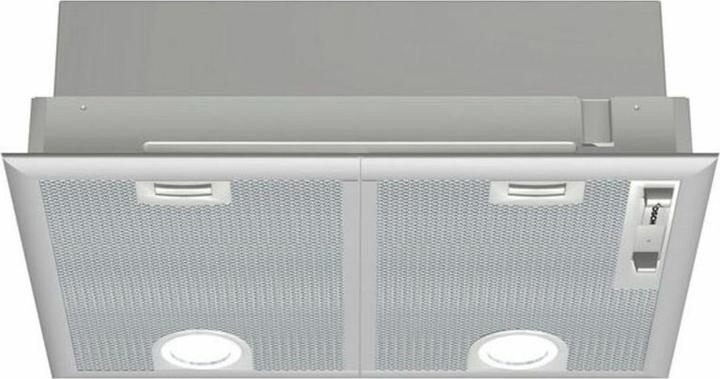

Bosch Hausgeräte DHL555BL

The fan module offers you design flexibility for mounting on the wall or above a cooking island. The intensive setting quickly and effectively eliminates strong cooking odors. Metal grease filters are required for exhaust and recirculation hoods to filter grease and other solids from the air being drawn in. To maintain high effectiveness, they should be cleaned by hand or in the dishwasher approximately once a month.

Optimal fan performance for every kitchen size. Whether you have an open-plan kitchen or a small closed kitchen, we provide the optimal fan performance for every kitchen type. For a consistently pleasant indoor climate, the air should be completely exchanged 6 to 12 times per hour. To achieve this, the air flow rate or the performance of the range hood must correspond to the room volume.

Technical specifications:
Operating mode and performance: Either exhaust or recirculation mode. Activated carbon filter. Fan performance in exhaust mode according to EN 61591: max. Normal setting 362 m³/h, intensive setting 618 m³/h. 2 fan motors. Operation: 3-stage slide switch + intensive. Comfort: Metal grease filter with aluminum frame, dishwasher safe.

Design: Illumination strength 438 lux, color temperature 3500 K. Environment and safety: Energy efficiency class C, average energy consumption 79.8 kWh/year, fan efficiency class D, lighting efficiency class A, grease filter efficiency class B, noise min./max. normal setting 38/56 dB.

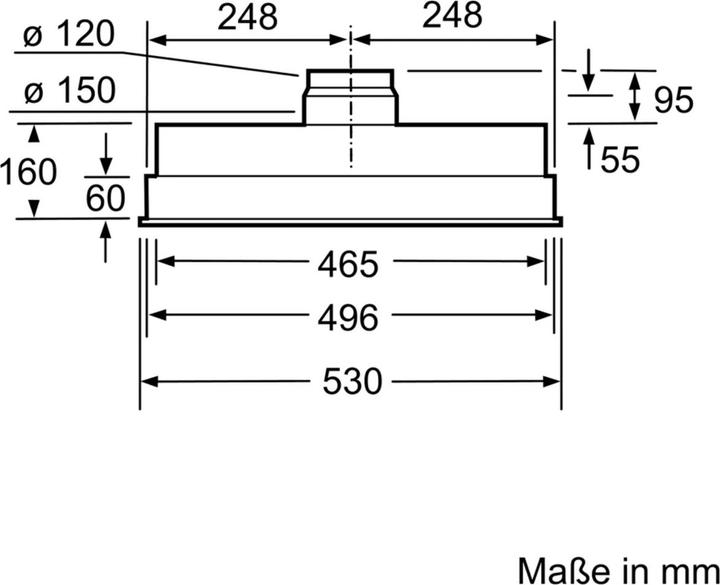

Technical information: For prepared cabinets, food, etc., as well as above cooking islands. Exhaust duct Ø 150 mm, 120 mm. Max. air flow rate: 618 m³/h. Connection value: 206 W. With backdraft damper. Device dimensions (HxWxD): 255 x 530 x 380 mm.
