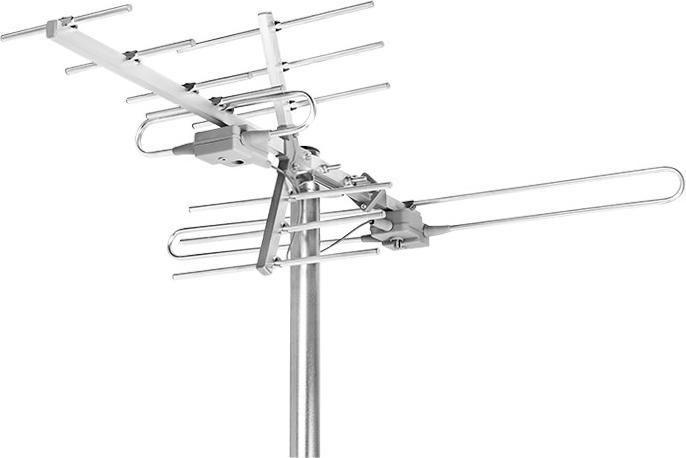

Blow 2407# Dual Sound TV Antenna VHF/UHF

Duplexa allows the reception of DVB-T/T2 channels broadcast in the VHF/UHF band as part of the national multiplexers MUX1, MUX2, MUX3, MUX8, and local channels. The antenna features an F-signal socket, which significantly simplifies the connection of the product to the installation. The dimensions, shape, and placement of all elements have been optimized for the best performance.

Specification:
Reception band: VHF and UHF
Channels: 5–12, 21–60
Frequency range: 174–230 MHz, 470–790 MHz
Polarization: Horizontal and/or vertical
Standing wave ratio (VSWR):
Power gain: VHF: 1 dBi, UHF: 6–10 dBi
Output impedance: 75 Ω
Output connector: F-type
Number of elements: 12
Folded dimensions:
Polarization H+H: 770 x 680 x 70 mm
Polarization H+V: 770 x 245 x 680 mm.
