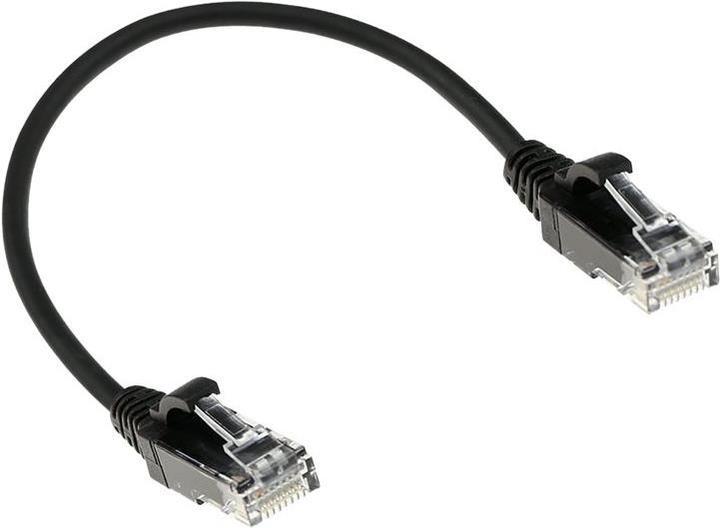

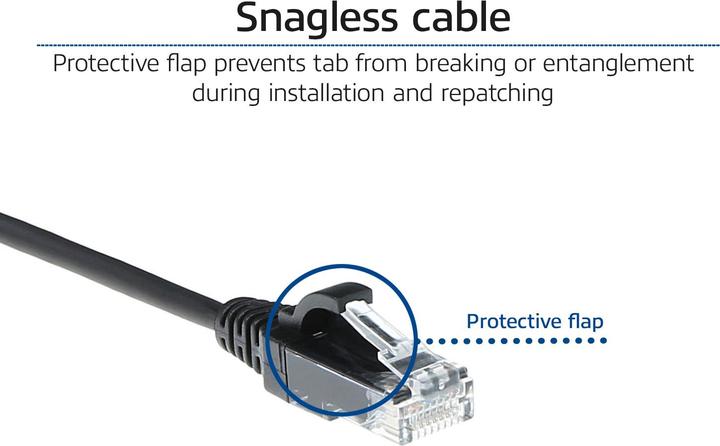

Black 0.25 meter LSZH U/UTP CAT6 datacenter slimline patch cable snagless with RJ45 connectors

U/FTP, CAT6, 0.25 m
CHF127.28/1m
Ratings
Delivered between Mon, 7.7. and Thu, 10.7.
More than 10 items in stock at third-party supplier
Supplied by
JACOB DE
Free shipping starting at 50.–

Product details

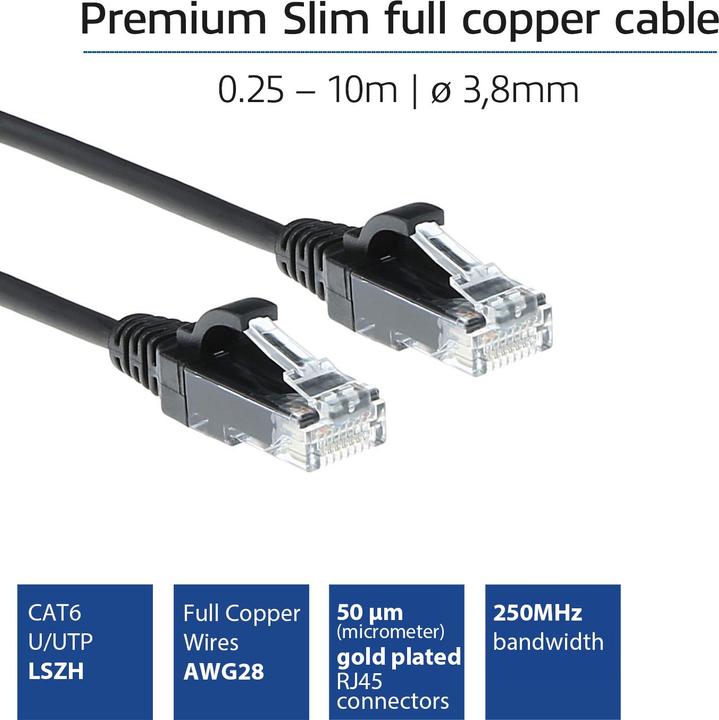

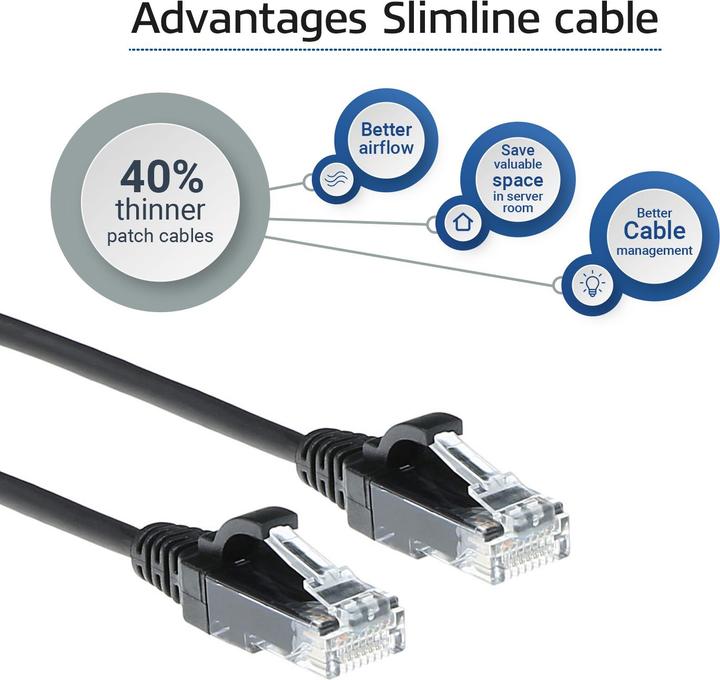

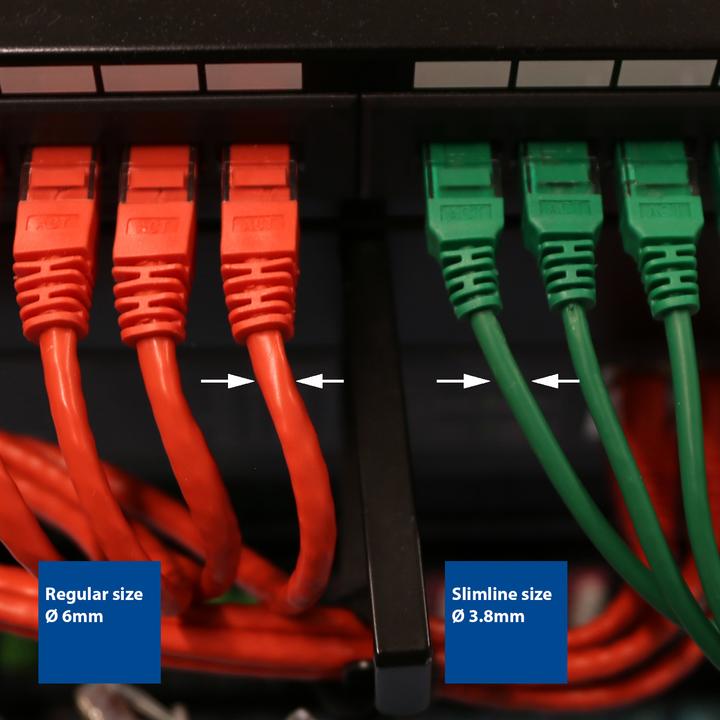

CAT6 U/UTP slimline datacenter Ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT6 patch cords, and the bending radius is lower compared to regular patch cords. All this results in better airflow in the cabinet.

Although ISO/IEC and TIA standards describe the use of patch cords between 22 and 26 AWG, it is possible to use 28 AWG patch cables, but this will result in higher attenuation, particularly at higher frequencies.

ACT therefore recommends a shorter permanent link length than with regular 24 AWG patch cords to accommodate this higher attenuation.

ACT advises a maximum bundle size of 24 cables in PoE applications to assist in limiting the temperature increases in the cables associated with delivering PoE deployments. Current standards work limits the maximum temperature increase to less than 15 degrees Celsius above ambient for the center cable in a bundle.

Key specifications

Patch cable type
Copper cable
Contact assignment
crossover
Item number
17224682

General information

Publisher
ACT
Category
Network cables
Manufacturer no.
DC9952
Release date
21.10.2021
External links
Manufacturer's site (de)

Colour

Cable colour
Black

Material

Material
Copper
Material of the isolation
LSZH

Cable properties

Connection A
RJ45
Connection B
RJ45
Cable Application
Network
Cable design
Slim
Plug type
Gold-plated contacts
Cable connection
Connection (m/m)
American Wire Gauge (AWG)
28
Frequency
250 MHz
Temperature range
-20° - +60° C

Patch cable properties

Patch cable type
Copper cable
Patch cable Features
Slim
Max. data transfer rate
0.03 GB/s

Twisted-pair cable properties

Cable category
CAT6
Contact assignment
crossover
Shield
U/FTP

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Diameter
3.80 mm
Length
0.25 m

30-day right of return
24 Months Warranty (Bring-in)
