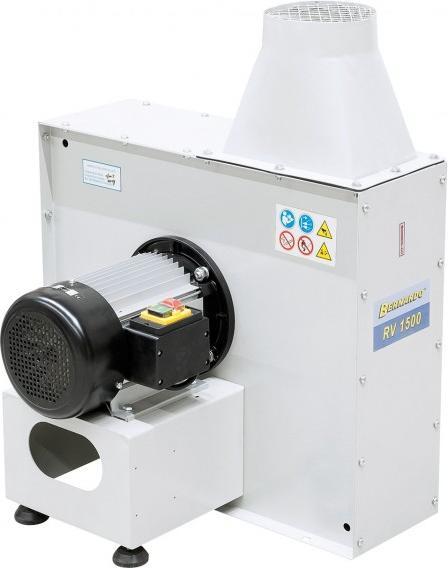

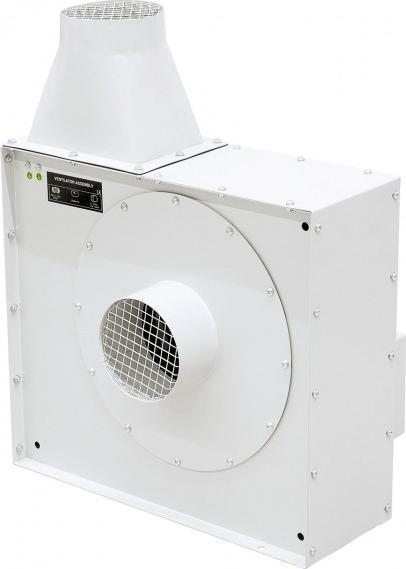

Bernardo Cantina Bernardo - Radialventilator RV 1500

Radial Fan RV 1500

The radial fans of the RV series feature a powerful drive motor and an optimally designed fan blade shape, ensuring smooth operation and high efficiency. These two models are ideal for transporting fine waste and are also well-suited for ventilating and exhausting rooms.

Technical Data:

• Maximum airflow: 2300 m³/h
• Maximum negative pressure: 1700 Pa
• Suction connection diameter: 150 mm
• Outlet diameter: 145 mm
• Motor power: 1.5 kW (2.0 HP)
• Voltage: 400 V
• Dimensions (W x D x H): 575 x 540 x 700 mm
• Weight: approx. 35 kg

Features:

• The use of radial fans ensures optimal production conditions and clean air at the workplace
• Ideal for extracting dust, shavings, smoke, grains, particles from wood, plastic, etc.
• Stable steel sheet construction reduces static charging compared to plastic housings
• Scratch-resistant surface due to high-quality powder coating
• Constant suction power is guaranteed even during prolonged operation
• Fan blade made of steel, statically and dynamically balanced

Available special accessories:

• Grounding set ES 1
• Automatic switch ALV 10 / 1 M
• PU spiral suction hose diameter 150 mm (6 m)

Subject to changes and errors.
