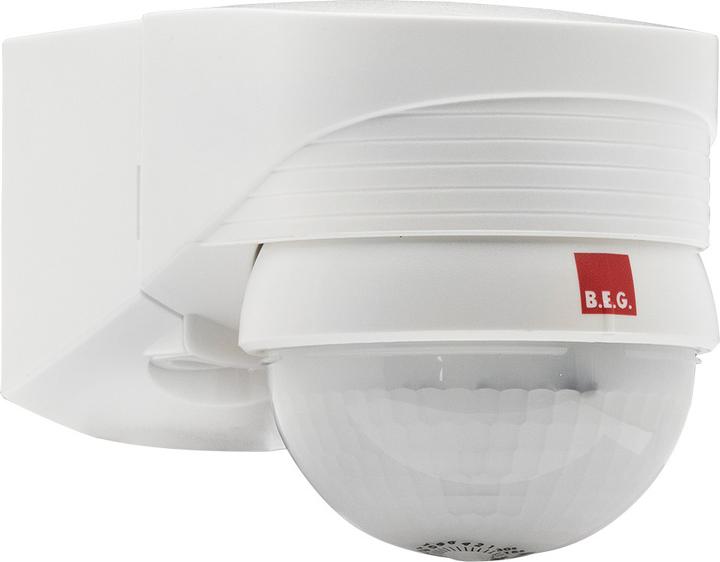

BEG B.E.G. 93308

BEG Brück Electronic Motion Detector LC-plusDALISYS 280ws

Manufacturer: BEG Brück Electronic
Designation: Motion detector DALI-SYS, ws
Type: LC-plusDALISYS 280ws
Other bus systems: Other
Design: Presence detector
Material: Plastic
Material grade: Other
Surface protection: Untreated
Finish: Matt
Colour: White
RAL number (similar): 9010
Transparent: No
Creep under protection/back field monitoring: Yes
Operating mode switch: No
Animal track: No
Staircase monitoring: Yes
Response brightness adjustable: Yes
Teach function for response brightness: No
DALI-2 certified: No
Optimum mounting height: 2.5 m
Max. range to one side: 16 m
Range to one side: 16 m
Max. range frontal: 9 m
Detection field diameter on floor: 20 m
Min. switch-on time: 1 s
Max. switch-on time: 120 min

Further details: Long-range DALI multisensor for wall or outside corner mounting, supply voltage via DALI bus, seamless integration into the scalable B.E.G. LUXOMAT net DALI-SYS, master-slave operation for extending the detection zone, semi-automatic, fully automatic or twilight switch operation, ambient light-dependent control or switching output. DIP and HEX switches for fast commissioning with basic functions, factory program for easy installation testing. Full range of functions is only possible with accessories from B.E.G. LUXOMAT net DALI-SYS product range. EAN: 4007529933082.
