Barkan WH 464L

Exceptionally long and stable wall mount with double arm, allowing 60° swivel for TVs up to 65 inches (165 cm) and 90° swivel for TVs up to 43 inches (109 cm) with a width up to 39 inches (99 cm).

Includes a patented mechanism to fit various screen types and screens with special back structures.

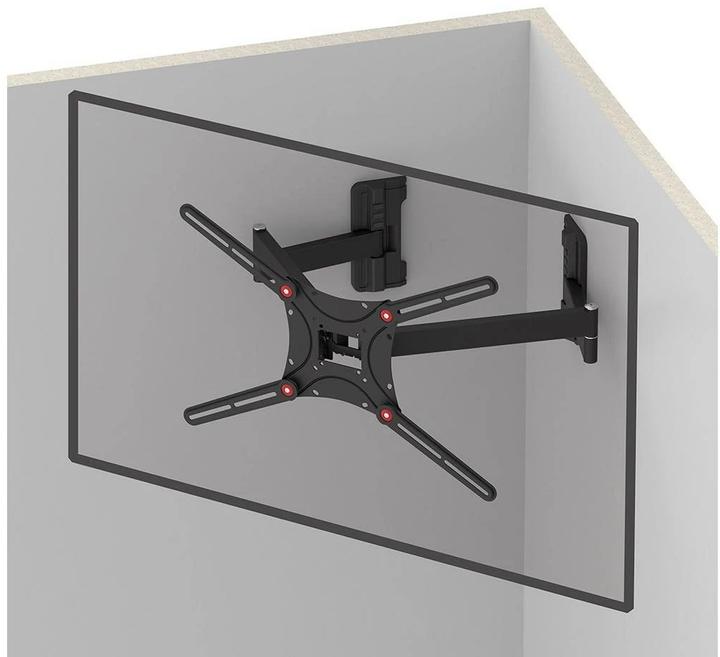

Corner installation is possible for screens up to 80 inches (203 cm), depending on installation limitations.

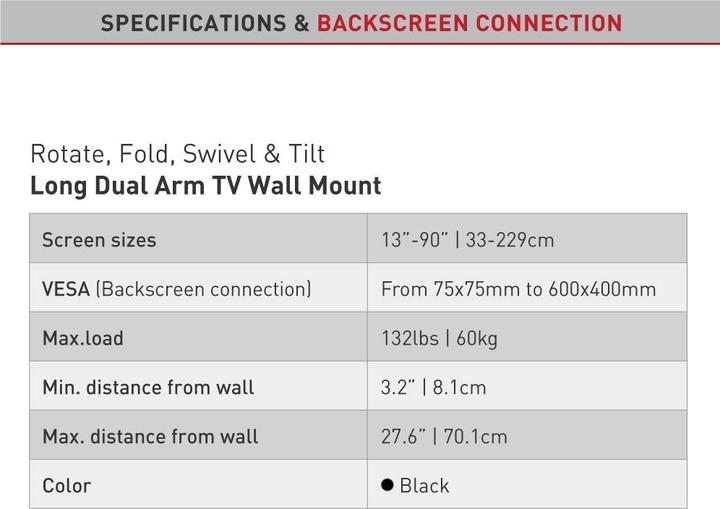

Designed for screens weighing up to 132 lbs (60 kg).

Minimum distance from the wall: 3.2 inches (8 cm).

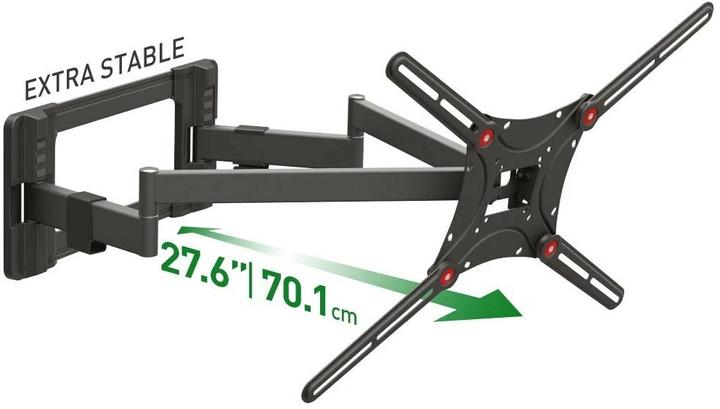

Maximum distance from the wall: 27.6 inches (70 cm).

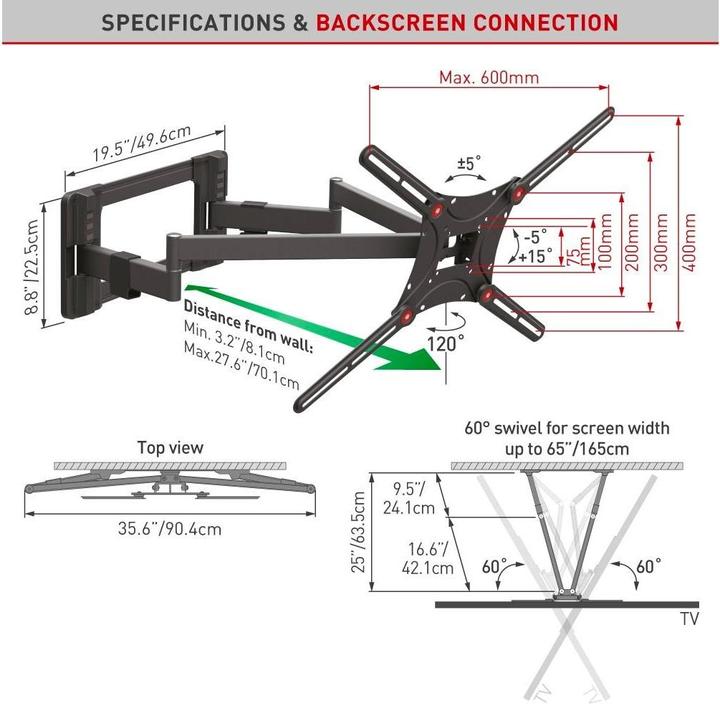

The mount features three pivots that rotate near the wall 180°, fold 360°, and swivel near the screen connection plate 180°, in addition to a tool-free tilt from -5° to 15° and a +/-5° leveling after installation.

Fits TVs with VESA standard bracket mounting hole patterns of 75x75, 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, and 600x400 mm, as well as non-VESA up to 600x400 mm.

Safety tested with a load of 465 lbs (211 kg).

The mount is suitable for wood-stud walls, where the studs are 16 inches apart.

The rails connecting the two wall plates can be disassembled, allowing you to set the distance between the wall plates at your discretion. Note that making this alteration will result in different minimum and maximum distances of the mount from the wall than stated in the specifications.

The mount is suitable for installation in the corner of a room and is also compatible with larger screen sizes, provided their specifications comply with the mount.
