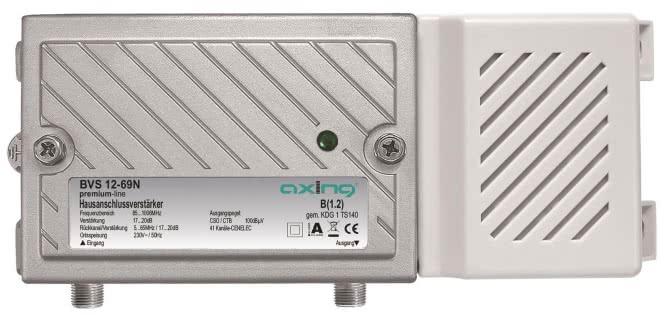

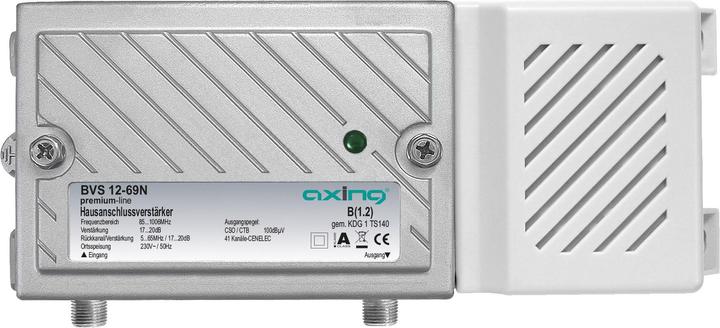

Axing Amplifier BVS 12-69N 20 dB,100 dBaeV CSO/CTB,1006 MHz

The Axing BVS 12-69N is a powerful home connection amplifier designed to boost television signals within a frequency range of 85 to 1006 MHz. With a gain of 20 dB in the forward path and an equivalent gain in the return channel, this amplifier is ideal for use in digital TV applications. The device is housed in a robust aluminum die-cast casing, ensuring both durability and effective heat dissipation. The integrated power connection allows for easy installation, while the grounding connection provides additional safety. The amplifier is designed to operate within a temperature range of 20 to 50 °C and meets the requirements of the international protection class IP20. With a noise figure of 7 dB, the BVS 12-69N ensures clear signal transmission without significant interference.

• Adjustable attenuation and equalization for optimal signal quality
• Active return channel amplification from 5 to 65 MHz
• Sturdy aluminum die-cast housing for high stability
• Input voltage of 230 V with integrated power supply
• Power consumption of only 6 W in standard operation.
