CHF 303.–

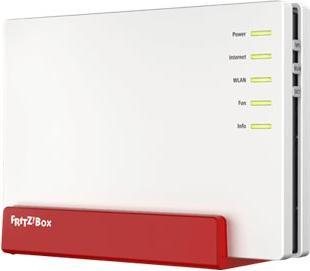

AVM FRITZ!Box 7580

ATTENTION: DSL/VDSL modem does not work in Switzerland, only usable as router behind a modem!

Art-Nr 5885570
approx. 7 – 9 days

Availability

Mail delivery

  • approx. 7 – 9 days

Collection

  • All locations: approx. 6 – 8 days

If ordered immediately.
Information subject to change.

View details

Description

Suitable for all IP-based connections (ADSL and VDSL)
Highest Internet speed through VDSL vectoring
Ultra-fast 1,733 MBit/s and most stable transmission through WLAN AC (5 GHz)
Fast 800 MBit/s and maximum range due to WLAN N (2.4 GHz)
Optimum connection to several WLAN devices used at the same time due to extended multi-antenna method (MU-MIMO)
VoIP telephone system with versatile convenience functions for all telephones (analog, ISDN, DECT and IP telephones)
Up to 6 cordless phones can be used via integrated DECT base, e. g. all FRITZ! fon models
Analogue telephones, fax, answering machine and door intercom can be connected

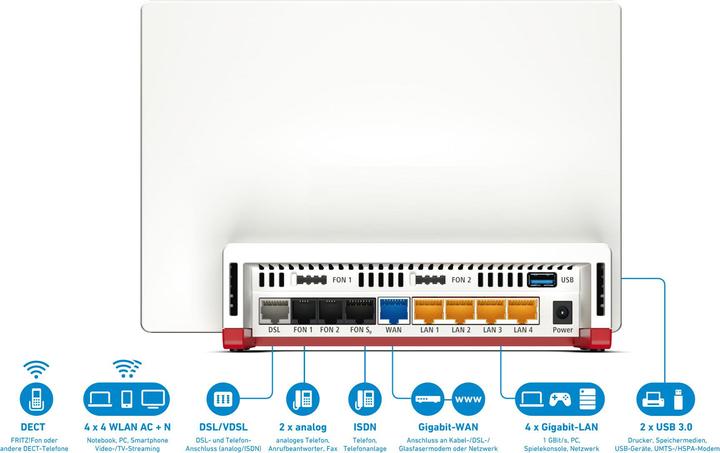

2 powerful USB 3.0 ports for storage media (NAS), network printers and mobile phone sticks
4 ultra-fast Gigabit LAN ports for computers, televisions and other network devices
1 Gigabit WAN connection for connection to cable or fibre optic modems
2 analog connections, 1 ISDN S0 connection

High-speed DSL on all connectionsThe FRITZ! box 7580 brings the high-speed home network to every DSL connection - whether ADSL, ADSL2+ or VDSL - and meets the highest demands with a wealth of extras. With VDSL vectoring, the FRITZ! box supports the current standard for transmission rates of more than 100 Mbps. The data throughput within adjacent copper cables is thus noticeably improved.
The FRITZ! box 7580 can be used on the DSL connections of all providers.

High-end WLAN AC+N with 1,733 + 800 MbpsWith its innovative WLAN equipment, the FRITZ! box 7580 takes into account the constantly increasing number of WLAN devices in the household. The extended multi-antenna method (4x4 multi-user MIMO) enables an optimal connection to several WLAN devices used at the same time. At the same time, the FRITZ! loudspeaker's dual WLAN enables it to work in parallel in the 2.4 GHz (WLAN N) and 5 GHz (WLAN AC) frequency bands, providing two WLAN networks and achieving data rates of up to 2,533 Mbps. Several very broadband intensive applications can thus be used in parallel operation.
These advanced WLAN transmission methods further increase the radio radius - at stable high data rates and over long distances in the home network.

Telephony options for every needThe integrated PBX is designed for the new IP-based connections (Voice over IP). Telephone calls are made via up to six cordless telephones that can be registered at the integrated DECT base. Connections for two analogue and one ISDN telephone are also available. IP phones and smartphones also become full-fledged phones via WLAN.
Several integrated answering machines, local and online directories as well as numerous convenience functions complete the extensive telephony range of the FRITZ! box 7580. smarthome devices such as the switchable power socket FRITZ! DECT 200 can also be controlled via the DECT base station.

Versatile multimedia functionsThe FRITZ! box brings all connected USB memory as well as online storage and the contents stored on it to the home network. Thanks to the integrated media server with NAS connection, stored movies, music and images are made available and can be distributed to playback devices via tablet or smartphone, for example. USB 3.0 ensures extra fast data transfer. The FRITZ! box 7850 thus forms a powerful platform for networked multimedia applications such as IPTV, video on demand or streaming.
The FRITZ! box 7580 always remains very economical in consumption thanks to several eco-mode automatisms.
more

Important information

AVM warranty information

We offer a 2-year Fritzbox warranty. Three additional years are covered by the manufacturer AVM Berlin; however, the end customer must directly contact AVM in order to benefit from this offer.

Specifications

Key specifications

802 11ac transfer rate1733 Mbit/s
802.11 g/n transmission rate800 Mbit/s

General information

Manufacturer AVM
Product type Routers
i

Routers

A router is a device that forwards data packets between computer networks, creating an overlay internetwork. A router is connected to two or more data lines from different networks. When a data packet comes in one of the lines, the router reads the address information in the packet to determine its ultimate destination. Then, using information in its routing table or routing policy, it directs the packet to the next network on its journey. Routers perform the "traffic directing" functions on the Internet. A data packet is typically forwarded from one router to another through the networks that constitute the internetwork until it gets to its destination node.

More information...

Item number5885570
Manufacturer no.20002761
Release date19.08.2016
Sales rank in Product type Routers81 of 417
External links Manufacturer's site (de)
Specifications (de)

Router properties

i

Router properties

Describes the router.

Number of ports
i

Number of ports

Maximum number of ports that can be used simultaneously.

5
Max. port speed
i

Max. port speed

Describes the maximum data transfer rate. Is not necessarily supported by all ports.

More information...

1000 Mbit/s
i

1000 Mbit/s

In computer networking, Gigabit Ethernet (GbE or 1 GigE) is a term describing various technologies for transmitting Ethernet frames at a rate of a gigabit per second (1,000,000,000 bits per second).

More information...

WLAN frequency band
Dual-Band
Multi-user MIMO
Yes
Number of antennas
i

Number of antennas

Describes the number of physically installed antennas.

4 x
Voice over IP Client
i

Voice over IP Client

Describes whether Voip-Connections can be established (well-known example: FRITZ!Box from AVM)

Yes
DECT base
i

DECT base

Telephony handsets can be connected by DECT

Yes
Guest access
i

Guest access

Possibility to connect a separate WLAN for guests.

Yes
WPS
i

WPS

With Wi-Fi Protected Setup (WPS), clients can be connected with the push of a button, without having to enter a password.

WPS Button describes whether the device has got a hardware switch that can be operated manually, without the use of complicated software.

More information...

Yes
Wi-Fi on/off switch
i

Wi-Fi on/off switch

An on/off switch allows the WLAN to be switched on or off directly on the device without having to log into the configuration menu.

Yes
Firewall
i

Firewall

A firewall can either be software-based or hardware-based and is used to help keep a network secure. Its primary objective is to control the incoming and outgoing network traffic by analyzing the data packets and determining whether it should be allowed through or not, based on a predetermined rule set. A network's firewall builds a bridge between an internal network that is assumed to be secure and trusted, and another network, usually an external (inter)network, such as the Internet, that is not assumed to be secure and trusted.

More information...

Yes
DLNA
i

DLNA

Digital Living Network Alliance (DLNA) has the goal that devices from different manufacturers can share media over a network. For example, movies are stored on a Digital Media Server (for example, a NAS). A Digital Media Player (for example, a DLNA-enabled TV or Blu-ray Player) has the ability to find and play the movies from the NAS.

More information...

Yes
Quality of Service (QoS)
i

Quality of Service (QoS)

The quality of service (QoS) refers to several related aspects of telephony and computer networks that allow the transport of traffic with special requirements. In particular, much technology has been developed to allow computer networks to become as useful as telephone networks for audio conversations, as well as supporting new applications with even stricter service demands.

More information...

Yes

Wi-Fi standard

i

Wi-Fi standard

Describes the transfer of WLANs.

More information...

802.11a
i

802.11a

IEEE 802.11a-1999 or 802.11a, is an amendment to the IEEE 802.11 specification that added a higher throughput of up to 54 Mbit/s by using the 5 GHz band.

More information...

Yes
802.11ac
i

802.11ac

IEEE 802.11ac is a wireless computer networking standard of 802.11, currently under development (Draft 4.0[1]), providing high-throughput wireless local area networks on the 5 GHz band.

More information...

Yes
802 11ac transfer rate
1733 Mbit/s
802.11b
i

802.11b

802.11b has a maximum raw data rate of 11 Mbit/s and uses the same media access method defined in the original standard. 802.11b products appeared on the market in early 2000, since 802.11b is a direct extension of the modulation technique defined in the original standard. The dramatic increase in throughput of 802.11b (compared to the original standard) along with simultaneous substantial price reductions led to the rapid acceptance of 802.11b as the definitive wireless LAN technology.

More information...

Yes
802.11g
i

802.11g

This works in the 2.4 GHz band (like 802.11b) but operates at a maximum raw data rate of 54 Mbit/s, or about 19 Mbit/s net throughput. 802.11g hardware is fully backwards compatible with 802.11b hardware.

Yes
802.11 g/n transmission rate
800 Mbit/s
802.11n
i

802.11n

802.11n is a proposed amendment which improves upon the previous 802.11 standards by adding multiple-input multiple-output (MIMO) and many other newer features. Though there are already many products on the market based on Draft 2.0 of this proposal, the TGn workgroup is not expected to finalize the amendment until November 2008.

Yes

Network interface

i

Network interface

Describes the interface of the product to the network.

RJ45 LAN
i

RJ45 LAN

RJ45 port to connec with a local area network.

5 x

Additional connections

i

Additional connections

Describes other connections of the product.

USB 3.0 type A
i

USB 3.0 type A

The universal serial bus (USB) is a serial bus system for the connection of a computer to external devices. USB3.0 can reach up to 5 Gbit/s in Superspeed modus.

More information...

2 x

Please click directly on the incorrect data to access the registration form.

Alternatively, you can register a generic error report (wrong picture, unsuitable accessories, etc.)

Cancel

Report incorrect data

Correction suggestion

Comment

Report incorrect data

Returns and warranty

Dead on arrival (DOA) 30 Days Bring-in
Warranty 5 Years Bring-in
30-day right of return
i

30-day right of return

A minimum of 10% will be deducted from opened products. Unfortunately, we cannot accept a product if it is damaged, incomplete or missing its original packaging.

Returns and warranty

Please use our simplified returns and warranty process to return a product or register a warranty case. Returns and warranty

Please use our simplified warranty process to view the warranty period as well as any warranty extensions you may have purchased. This will ensure that your return or warranty case is processed quickly and effectively.

Test reports

90%

Average rating 90%
Number of test reports 7

88%
Stiftung Warentest 12 Router DSL und Kabel 05/2017
Rank 1 out of 12
Test score 1,6 - gut
i

Notice

The test reports shown here are provided by an external source. We have no influence on the product ratings.

Stiftung Warentest Logo

Edition 05/2017 - Wie in vielen Vergleichstest von Routern steht auch hier ein Modell von AVM ganz oben. Die AVM FRITZ!BOX 7580 macht im Test durchweg eine gute Figur, einzig der Stromverbrauch könnte noch ein wenig geringer sein. Bei der Datenübertragung macht das Gerät einen guten Eindruck, bei der Sicherheit geht es kaum besser. Vor allem aber auch mit der exzellenten Ausstattung und der einfachen Bedienung weiß die Fritzbox zu gefallen.

Go to complete test report
95%
PCgo Single test
Test score 90 Punkte - sehr gut
i

Notice

The test reports shown here are provided by an external source. We have no influence on the product ratings.


Top-Produkt
PCgo Logo

Edition 12/2016- Der Router ist exzellent ausgestattet und dank der MU-MIMO-Unterstützung auch für die Zukunft bestens aufgestellt. Wer einen leistungsstarken Access Point sucht, kommt um die Fritzbox 7580 derzeit nicht herum. Die Auszeichnung als Top-Produkt ist auf jeden Fall verdient.

100%
connect Single test
Test score 5 von 5 Sternen
i

Notice

The test reports shown here are provided by an external source. We have no influence on the product ratings.

connect Logo

Edition 11/2016- Optisch unterscheidet sich die AVM FRITZ!BOX 7580 durch das kastenförmige Gehäuse vom Top-Modell 7490 und den kleineren AVM-Routern. Diese Änderungen sind vor allem auf die Positionierung der für Multi-User-MIMO notwendigen Antennen zurückzuführen. Der Funktionsumfang ist sehr gut und auch die Auswahl an Anschlüssen ist prima. Zudem reagiert das Modell sehr flott und bietet bei NAS-Zugriffen einen verbesserten Datendurchsatz. Externe Modems werden unterstützt und auch die WLAN-Performance ist dank Multi-User MIMO Wave 2 verbessert. An manchen DSL- und Glasfaseranschlüssen kann es jedoch zu Anlaufproblemen kommen.more

großer Funktionsumfang
viele Anschlüsse
hohe Systemleistung (schnelle Reaktionen, verbesserter Datendurchsatz bei NAS-Zugriffen)
Unterstützung auch für externe Modems
stark verbesserte WLAN-Leistung dank Multi-User MIMO Wave 2
modernes Design
nur für IP-basierte Anschlüsse
Anlaufprobleme an manchen DSL- und Glasfaseranschlüssen
