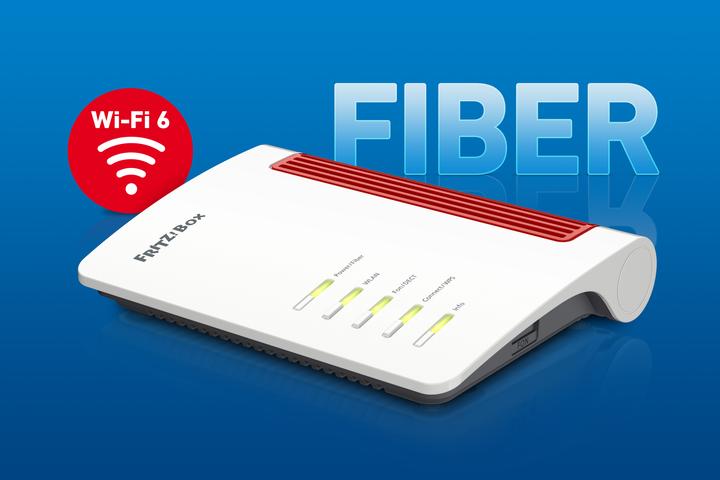

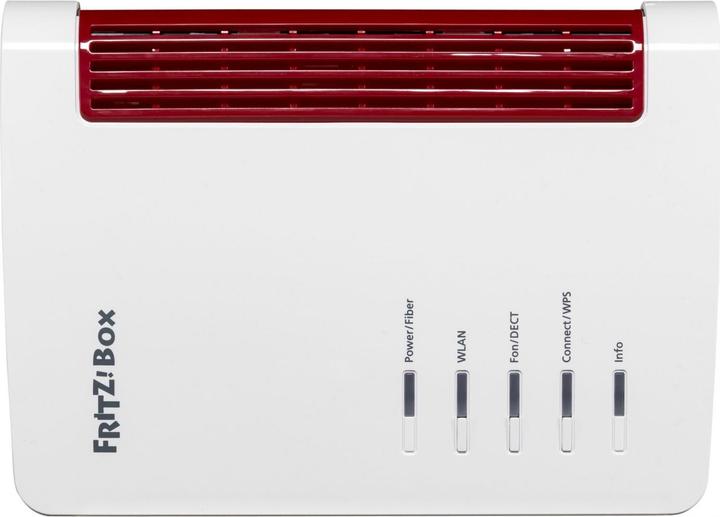

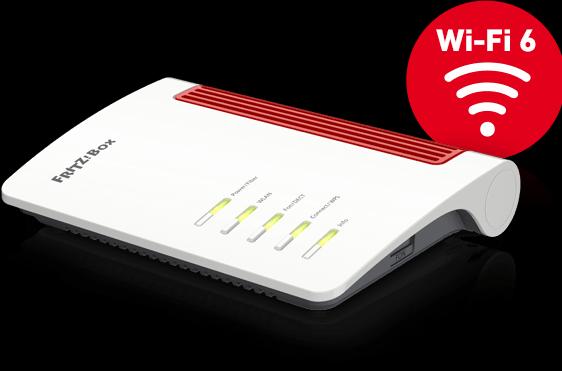

The FRITZ!Box 5530 Fiber is a powerful WLAN router specifically designed for use with fiber optic connections. With an integrated SFP cage, it allows the use of SFP-format fiber modules, providing high flexibility and compatibility with various fiber optic connections in Germany. The router supports modern Wi-Fi 6, enabling speeds of up to 3 GBit/s, and offers both 2.4 GHz and 5 GHz frequency bands for improved network performance. The FRITZ!Box 5530 Fiber is not just a router but also a VoIP telephone system with extensive comfort features that support the use of analog, DECT, and IP phones. Additionally, it provides a user-friendly interface and regular software updates to always deliver the latest features.
Router type | Wi-Fi router |
Number of ports | 3 Ports |

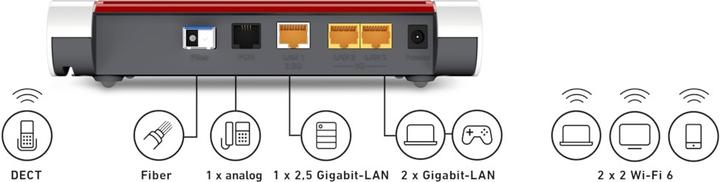

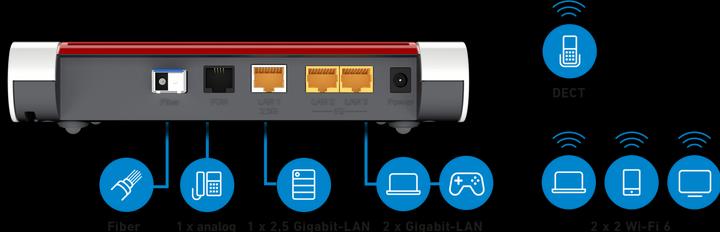

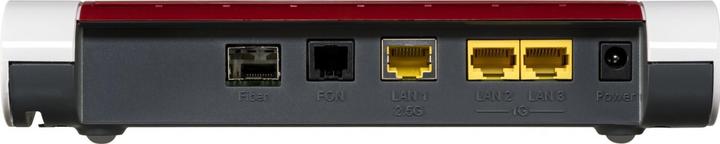

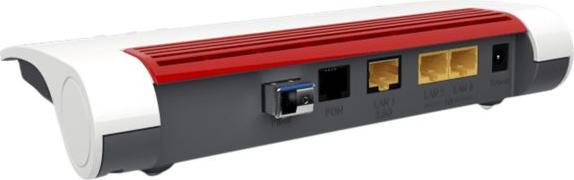

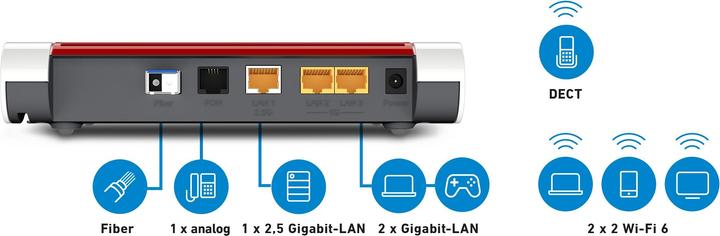

Network connections | RJ45 (3x), SFP (1x) |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Router functions | Fibre optic connection, Mesh capable, VoIP base, VPN |
5 GHz transfer rate | 2400 Mbit/s |
2.4 GHz transfer rate | 600 Mbit/s |
Item number | 21019753 |
Manufacturer | AVM |
Category | Routers |
Manufacturer no. | 20002960 |
Release date | 19.8.2021 |
Sales rank in Category Routers | 356 of 2727 |
External links | |
May include power adapter | No |
Colour | White |
Exact colour description | White |
Router type | Wi-Fi router |
Router functions | Fibre optic connection, Mesh capable, VoIP base, VPN |
VPN support | IPSec |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Wi-Fi frequency band | Dual band |
Wi-Fi encryption | WPA, WPA2, WPA2-PSK, WPA3, WPA3-PSK |
WLAN functions | Guest access, Multi-User MIMO, WLAN on/off switch, WPS (WiFi Protected Setup) |
5 GHz transfer rate | 2400 Mbit/s |
2.4 GHz transfer rate | 600 Mbit/s |
Max. data transfer rate | 3000 Mbit/s |
Number of ports | 3 Ports |
Network connections | RJ45 (3x), SFP (1x) |
Max. port speed | 2500 Mbit/s |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x fibre optic cable - 4 m, 1 x network cable - 1, FRITZSFP AON, FRITZSFP GPON |
Length | 15 cm |
Width | 20.80 cm |
Height | 3.70 cm |
Weight | 360 g |
Length | 27.10 cm |
Width | 18.60 cm |
Height | 6.80 cm |
Weight | 734 g |
How often does a product of this brand in the «Routers» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Routers» category returned?
Source: Digitec GalaxusWith its strong Wi-Fi performance and great features, the FritzBox 5590 Fibre wins the test. If you want even faster Wi-Fi with Wifi 7, go for the 5690 Pro - and enjoy the additional ZigBee radio, which allows you to connect and control more smart home devices. In return, you have to accept compromises in terms of telephone and USB connections...
The top FritzBox 7590, 6690 and 5590 routers are suitable for large flats and houses thanks to their powerful WLAN. With their wide range of functions, they can cope with almost all requirements. The affordable 7530 AX, 6660 and 5530 offer sufficient performance for smaller households...
The top routersFritzBox7590, 6690 and 5590 are suitable for large flats and houses thanks to their strong WLAN.With their wide range of functions, they can meet almost all requirements. For smaller households, the inexpensive 7530 AX, 6660 and 5530 offer enough power.
... In the test lab, the Fritzbox 5530 Fiber shows the maximum data throughputs that can be expected from its WLAN configuration. We measured a maximum of 698 Mbit/s in the 5 GHz band and 434 Mbit/s in the 2.4 GHz band. However, the data rates decrease relatively quickly with increasing attenuation (and thus greater simulated distance to the WLAN client) on 5 GHz...
The Fritz Box 5530 Fiber is a mid-range device for a top connection. Although it is suitable for the fastest and most reliable internet connections, it is weak in some areas. Compared to AVM's top models, for example, the WLAN range is quite low.
