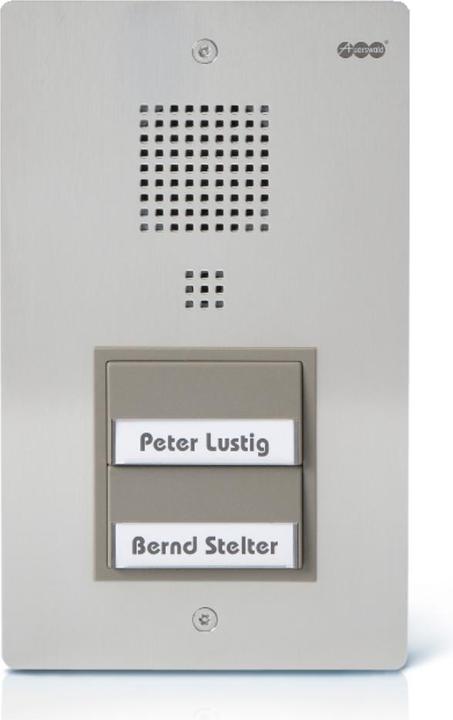

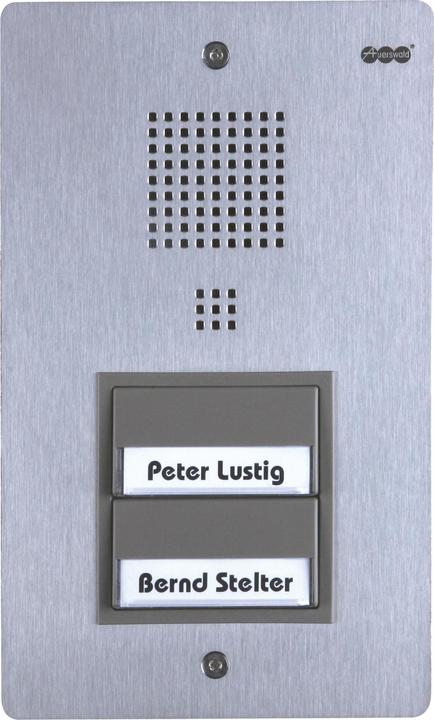

Auerswald TFS Dialog 302 / 2 push-buttons / stainless steel / for flush-mounting/operation on analogue

The stainless steel door intercom system from Auerswald sets new design accents at your door. Large buttons with integrated, energy-saving LED lighting guide visitors safely to their desired destination. An existing Auerswald installation can be easily upgraded to the TFS-Dialog 300, bringing it up to date with excellent sound quality. The door intercom system is simply screwed onto the existing flush-mounted box. For new installations, a suitable flush-mounted box is included.

The system is ideal for telephone systems without a separate door intercom interface, as it connects directly to a free analog extension port of the system. When a doorbell button is pressed, the door intercom system behaves like an extension phone and dials a previously programmed number – another extension, a group, or even an external destination. Simultaneously with this "door call," a switching operation can also be triggered, which can then – in the classic way – control the doorbell or the stairwell light.

If you want to turn on lights or control your existing doorbell with the press of a (doorbell) button, you will need additional switching contacts. Auerswald offers an exclusive solution for the TFS-Dialog 300 with a/b switching modules that can be easily connected anywhere along the signal line between the door intercom system and the telephone system, triggering the switching operation when a button is pressed.

Six of these a/b switching modules can be used with one TFS-Dialog 300 door station, and only a single two-wire line is required. Each button of the door station can control one or more switching modules with freely selectable assignments. The modules fit easily into existing flush-mounted boxes, for example.
