Aristo Ellipse template
295 mmDelivered between Wed, 28.5. and Wed, 11.6.
More than 10 items in stock at supplier
More than 10 items in stock at supplier
Product details

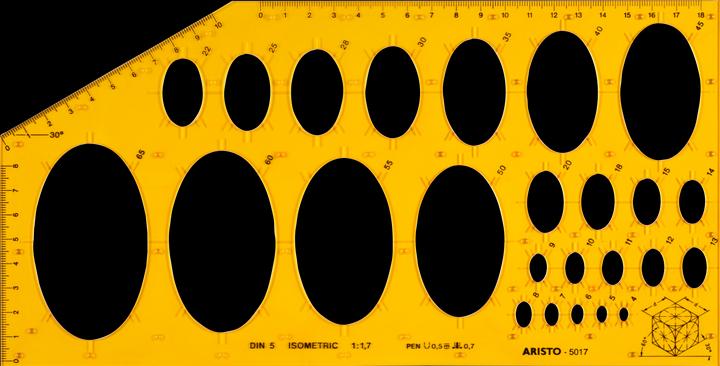

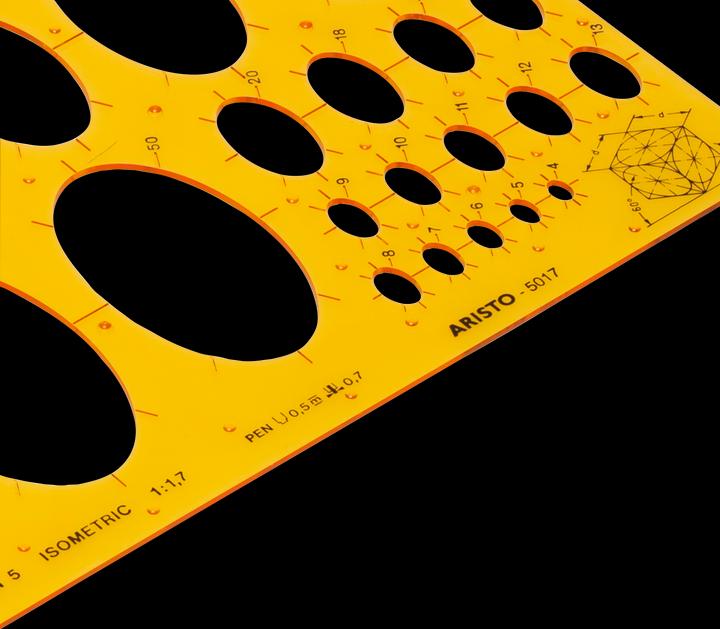

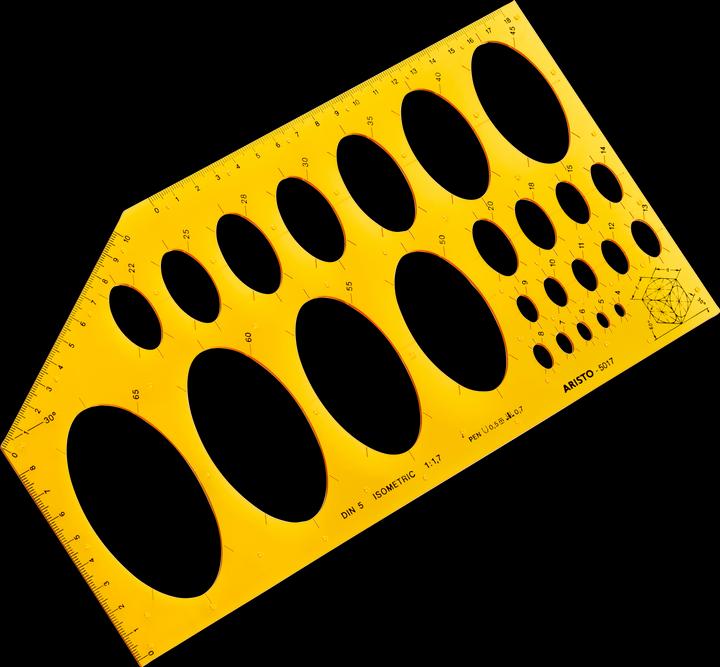

The Aristo ellipse template is a precise drawing tool specifically designed for creating ellipses on isometric axes. Made from high-quality, transparent plastic, this template offers a clear view of the drawing paper and allows for accurate placement. With 25 different ellipses covering diameters from 4 to 65 mm, it is ideal for technical drawings, architecture, and design projects. The axis ratio of 1:1.7 (35°16') ensures accurate representation of the ellipses, while the DIN 5 quality guarantees that the template meets common standards. The template comes in a practical plastic case that facilitates protection and storage.
- 25 ellipses on isometric axes for versatile applications
- Axis ratio of 1:1.7 (35°16') for precise drawings
- Made from transparent plastic for optimal visibility
- Delivered in a protective plastic case.
Ruler & Set square type | Ruler |
Length | 295 mm |
Material | Plastic |
Exact colour description | Orange |
Item number | 37404138 |
Material | Plastic |
Material group | Plastic |
Exact colour description | Orange |
Colour | Orange |
Ruler & Set square type | Ruler |
Length | 295 mm |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 31.30 cm |
Width | 19.70 cm |
Height | 0.40 cm |
Weight | 53 g |
