APC Schneider Electric Circuit Breaker 3P,20A,B R9F23320

Ratings
Delivered between Thu, 10.7. and Sat, 19.7.
Only 1 item in stock at supplier
Free shipping starting at 50.–

Product details

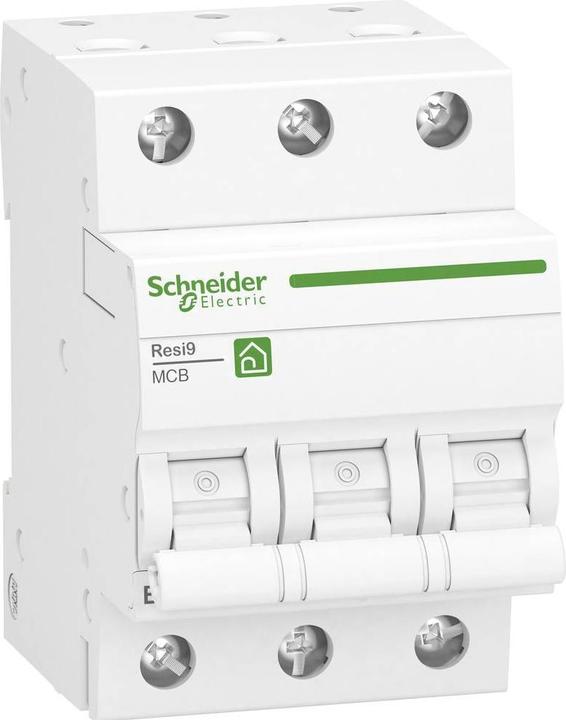

Schneider Electric Circuit Breaker R9F23320

Manufacturer: Schneider Electric
Designation: Circuit Breaker 3P, 20A, B
Type: R9F23320
Installation Depth: 44 mm
Tripping Characteristic: B
Total Number of Poles: 3
Number of Protected Poles: 3
Rated Current: 20 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 440 V
Rated Impulse Voltage Resistance Uimp: 4 kV
Voltage Type: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Frequency: 50..60 Hz
Power Loss: 2.2 W
Energy Limitation Class: 3
Flush Mounting: no
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: no
Width in Division Units: 3
Protection Class (IP): IP20
Ambient Temperature During Operation: -25..60 °C
Connectable Conductor Cross-Section Multistranded: 1..16 mm²
Connectable Conductor Cross-Section Solid: 1..25 mm²
Explosion Protected: no

Schneider Electric Circuit Breaker R9F23320: Additional Details
Resi9 circuit breaker, 3 poles, 20A, characteristic B. Switching capacity of 6kA according to IEC/EN 60898-1. Dual-function terminal for cables and fork busbar at the bottom of the device. Rear-mounted DIN rail fastening element at the bottom of the device. Spring mechanism for low-wear and user-independent switching of contacts. Color shade RAL 9003.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
90 mm
Width
60 mm
mounting style
Top-hat rail
number of poles
3
Item number
21601182

General information

Manufacturer
APC
Category
Residual-current device
Manufacturer no.
R9F23320
Release date
27.5.2021

Colour

Exact colour description
RAL 9003

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Top-hat rail
number of poles
3
Tripping characteristic
B
Rated current
20 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
440 V
Protection type (IP code)
IP20

Origin

Country of origin
Bulgaria

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
90 mm
Width
60 mm
Height
80 mm

Package dimensions

Length
8.20 cm
Width
7 cm
Height
5.50 cm
Weight
334 g

30-day right of return if unopened
24 Months Warranty (Bring-in)
