Allnet Switch unmanaged 5 port - 5x GbE - PoE Budget 85W - 1x bt out, 3x PoE af/at out, 1xPoE bt 90

5 ports
1Ratings
BrandMore from Allnet
Delivered between Wed, 15.4. and Sat, 18.4.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

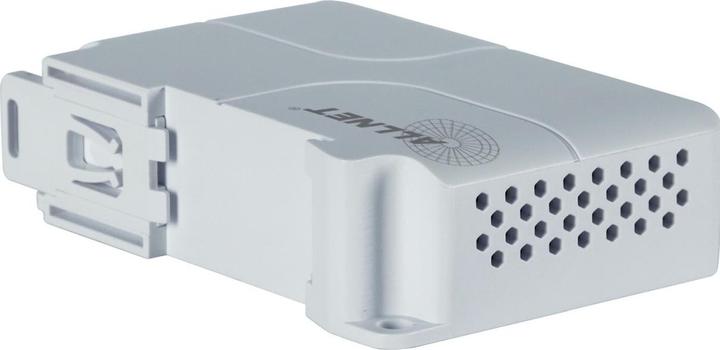

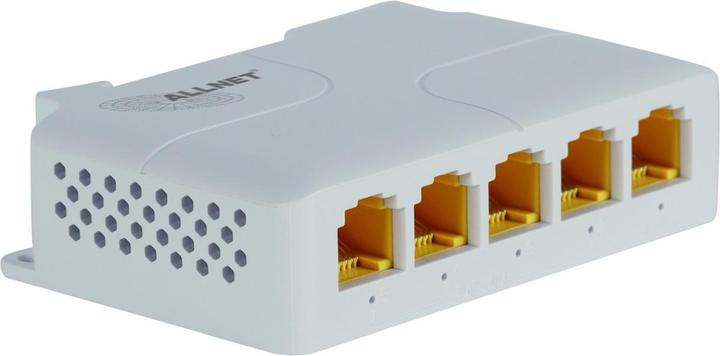

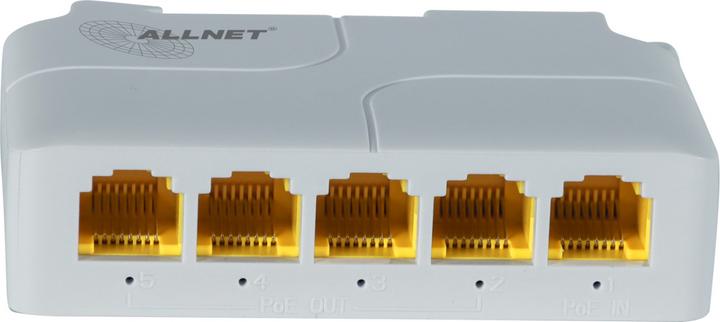

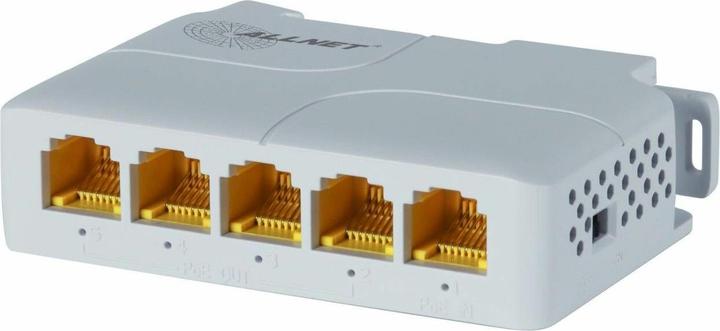

The ALLNET unmanaged 5-Port switch is a powerful and compact DIN-Rail switch designed for use in networks. With five Gigabit Ethernet ports, it offers a high transmission speed of up to 10 Gbit/s and supports Power over Ethernet (PoE) with a total budget of 85 watts. This switch is ideal for applications where a reliable power supply over the network is required, as it provides up to four PoE output ports (IEEE802.3af/at) and one PoE PD input (IEEE802.3bt). The fanless design ensures silent operation, while the mounting on a DIN rail allows for easy installation. The switch is suitable for use in various environments and offers a flexible solution for network expansion.

  • Fanless design for silent operation
  • Supports PoE with a total budget of 85 watts

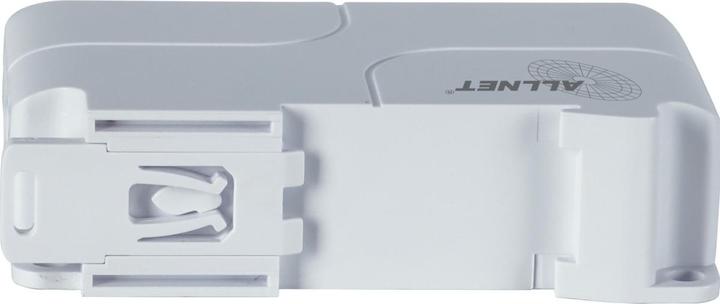

  • Compact design for mounting on DIN rails
  • Input for PoE PD with up to 90 watts
  • One Touch VLAN function for easy activation.

Key specifications

Switchtype
PoE Switch
Number of PoE ports
4 ports
Management
Unmanaged
Switch functions
PoE
Max. port speed
1000 Mbit/s

General information

Item number
42712000
Manufacturer
Allnet
Category
Network switches
Manufacturer no.
ALL-SG8005PD-BT90
Release date
5.2.2024
Sales rank in Category Network switches
432 of 5952

Colour

Colour
White
Exact colour description
White

Switch properties

Switchtype
PoE Switch
Number of ports
5 ports
Number of PoE ports
4 ports
PoE Standard
802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++)
PoE budget
85 W
Management
Unmanaged
Switch functions
PoE
switching layer
Layer 2
Switching capacity
10 Gbit/s
VLAN type
Port based VLAN
MAC adress table size
1000

Network connections

Max. port speed
1000 Mbit/s
Max. port speed RJ45
1000 Mbit/s

Application range

Application range
Business

Mains supply properties

Network operation
Powered device

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
8.72 kg
Climate contribution
CHF 0.21

Product dimensions

Length
5.20 cm
Width
8.20 cm
Height
2.30 cm
Weight
55 g

Package dimensions

Length
9.20 cm
Width
6.30 cm
Height
6.10 cm
Weight
76 g
