Allnet RJ45 magnetic fuse coupling, ejector socket, PoE-capable, up to 10 GBit

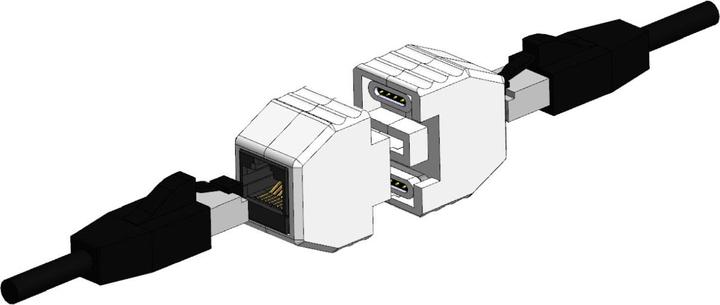

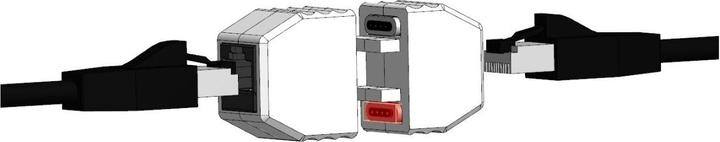

ALLNET RJ45 safety coupling, ejector socket, PoE capable, up to 10 Gbit in ABS housing. With this coupling, you can easily and effectively protect your valuable IT devices from damage. The two parts are held in place by magnetic contacts and release if the tensile load is too high. This prevents RJ45 sockets from being torn out and devices from being destroyed through carelessness. This safety product from ALLNET has been specially developed for hospitality customers and IT system users. The standard specifications for the ejection force of RJ45 plugs and sockets in accordance with IEC 60603-7 are higher than those of our ejector socket. This ensures that the connection between the two magnetic couplings always falls apart before any damage occurs to the device.

You can continue to use the existing infrastructure, as the plug supports all types of RJ45 plugs, from Cat5 to Cat6a, PoE according to IEEE 802.3 af/at/bt (90Watt) and up to 10 Gbit. Protect your devices! This device complies with EC Directive 2002/95/EC (RoHS).

Description:
Specification: RJ45 / RJ45 safety coupling with magnetic contacts. Power over Ethernet according to IEEE 802.3 af/at/bt - 90 watts average power consumption. Mating cycles RJ45: ≥ 750 socket according to connector standard IEC 60603-7-51. Data transfer rate: up to 10 Gbit IEEE 802.3an. Data transmission: bidirectional, full-duplex. Adapter type: inactive. Humidity: 10-90%. Temperature range: -20°C to 85°C. Connection: 2xRJ45. Connectors: Neodymium pogo pins 2x4-pin. Material socket: ABS plastic. Material housing cover: ABS. Colour of housing: white. Weight: 30g.

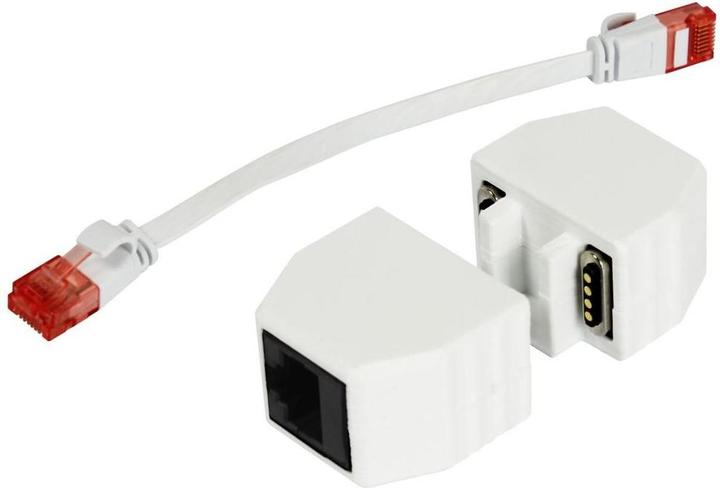

Scope of delivery: 1x drop connector (2-part) ABS housing, 1x patch cable RJ45, CAT6 250 MHz, 0.15m white, UTP (U/UTP), PVC, flat, Synergy 21.
