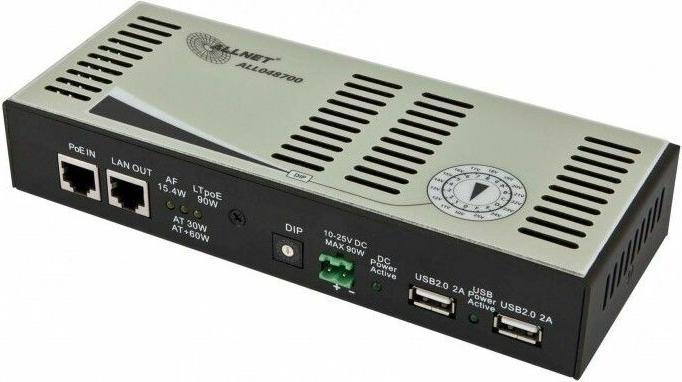

Allnet PoE Splitter/Extractor LTPoE 90W 10-25V Switchable - ALL048700

Highlights: IEEE 802.3af/at Standard, up to 90W output power, DC output 10-25V, 2x USB output 5V/2A. Power over Ethernet, even if your device does not support it. The Power over Ethernet splitter allows you to power your network devices, such as access points, LAN cameras, or switches/hubs that are not PoE-capable, via a CAT6 cable wherever you need the devices. The ALL048700 splits the voltage and data coming from the network cable into two ports before the device. A voltage of 10V-25V (in 1V increments) is output via a rotary switch, making this splitter universally applicable. The splitter is compatible with IEEE 802.3af/at / LT PoE++ and can deliver up to 90 watts of output power depending on the input power. Additionally, the two USB ports can be used to charge devices such as smartphones and tablets. Technical specifications: Supported standards: LT PoE++, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet enhancements, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab 1000BaseT. Connections: 1x RJ45 input (data and power), 1x RJ45 output (data only), 1x output (power only) Phoenix terminals, 2x USB 2.0 5V outputs at max. 2A each. LED indicators: Power / PoE Act/Status. Voltage input: 44~57V. Voltage output: 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25V. Power consumption: System: 2.1A (Max. 120W), Standby: typ. 1.8W. Housing: Metal housing, wall mountable. Dimensions: Length/Width/Height: 200 x 80 x 36 mm. Weight: 440g (without power supply and packaging). Environment: Operating temperature: 0 ~ 50 °C, Operating humidity: 10% ~ 90% (non-condensing), Storage temperature: -40 ~ 70 °C, Storage humidity: 5% ~ 90% (non-condensing). Marking: CE.
