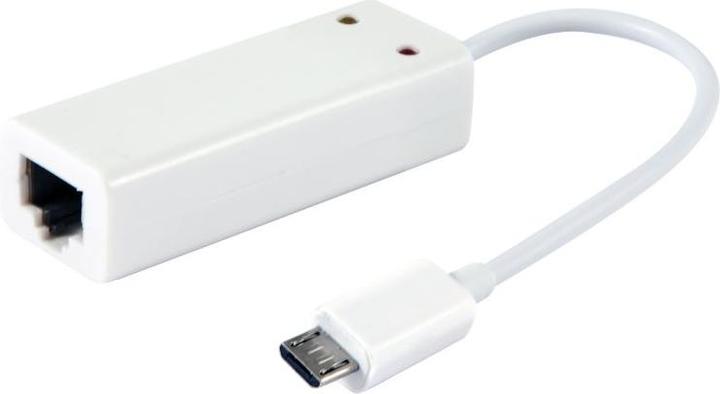

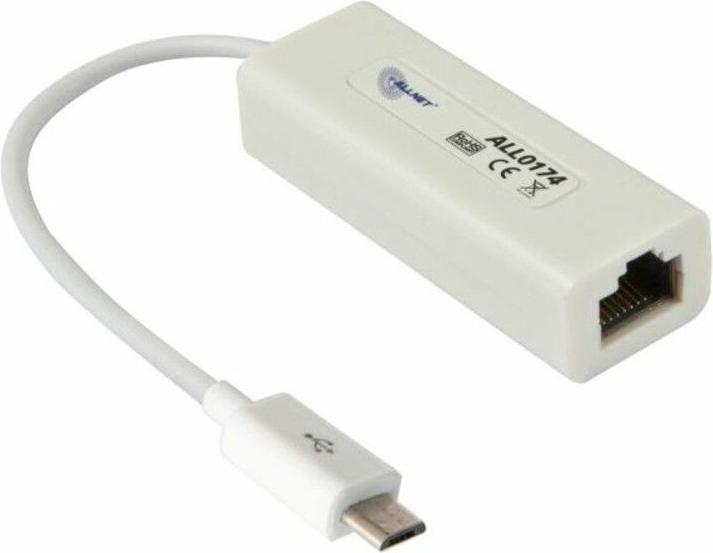

Allnet Micro USB 2.0 -> Fast Ethernet RJ45 network card

Micro USB 2.0 Fast-Ethernet 10/100MBPS Network Adapter

Highlights

• ASIX AX88772B Chipset
• Micro-USB 2.0 interface backward compatible with 1.0 / 1.1
• 10/100Mbps Fast-Ethernet
• Auto-detection of connection "Crossover or Correction"
• Ideal for ALL-HS02530 Hot-Spot/Printer or Android Tablets, etc.

The ALLNET ALL0174 is a USB 2.0 Micro-USB Fast-Ethernet adapter that allows you to expand the ALL-HS02530 Hot-Spot Printer/Gateway with a LAN interface. The LAN interface enables additional access points or other LAN devices to be connected behind the Hot-Spot. With the ALL0174, you also have the option to connect Android tablets or other devices, provided that the Asix 88772B chipset is supported by your operating system or can be manually installed to extend a LAN/network interface.

Technical Details:

• Chipset: Asix AX88772B
• Supported Standards: IEEE802.3, IEEE802.3ab, IEEE802.3u, IEEE802.3x
• USB Interface: Micro-USB 2.0 backward compatible with USB 1.0 / USB 1.1
• Network Interface: TP RJ45, Half-/Full-Duplex 10/100Mbps speed, Auto MDX function
• LED Indicators: Red: Function, Yellow: LAN (10/100Mbps) Transmission
• Housing: Plastic casing
• Dimensions/Weight: Width/Length/Depth: 20 x 55 x 15 mm, Cable length: approx. 10cm, Weight: 50 grams (device only)
• Environment: Operating Temperature: 0 ~ 50 °C, Operating Humidity: 10% ~ 90% (non-condensing), Storage Temperature: -20 ~ 60 °C, Storage Humidity: 30% ~ 95% (non-condensing)
• Markings: CE
• Package Contents: 1x ALL0174 USB Network Adapter, 1x Driver CD.
