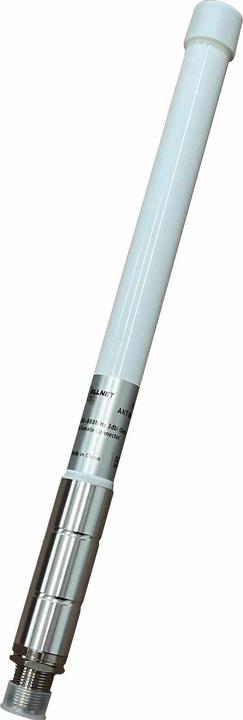

Allnet Antenna 868MHz 5.8dbi N-Female omnidirectional/round beam
LoraDelivered between Wed, 13.8. and Tue, 19.8.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 50.–
Product details

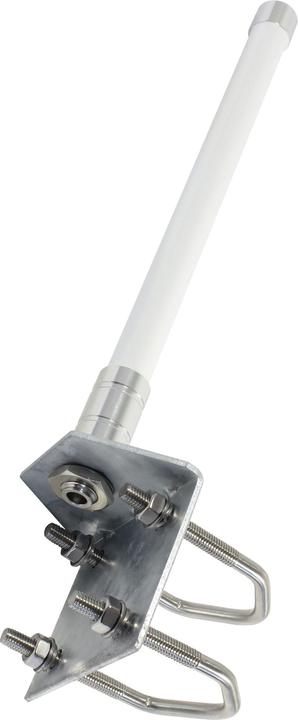

The ALLNET antenna 868MHz 5.8dBi N-Female is a powerful omnidirectional antenna specifically designed for Internet of Things (IoT) applications. With a frequency range of 860 to 880 MHz and an antenna gain of 5.8 dBi, this antenna provides excellent signal coverage and stability. It is ideal for use in LoRa and Helium networks, as well as for IoT devices that rely on 868 MHz systems. The antenna is suitable for both wall and mast mounting and can operate under extreme weather conditions, as it withstands wind speeds of up to 180 km/h. Its construction is robust and designed for temperatures ranging from -40 °C to +60 °C, making it a reliable choice for various applications.
- Frequency range: 860-880 MHz
- Radiation pattern: H360° V32°
- Impedance: 50 Ohm
- Maximum wind load: 180 km/h
- Temperature range: -40 °C to +60 °C.
Antenna type | WLAN Antenna |
Antenna connection | N-Type |
Cable length | 0.60 m |
Application range | Outdoor |
Operating temperature | -40 - 75 °C |
Item number | 31880680 |
Manufacturer | Allnet |
Category | Network antenna |
Manufacturer no. | ANT-868-5dbi-OMNI |
Release date | 20.10.2022 |
Sales rank in Category Network antenna | 77 of 1407 |
Antenna type | WLAN Antenna |
antenna reception | Lora |
Antenna gain | 5 dBi |
Antenna connection | N-Type |
Cable length | 0.60 m |
Application range | Outdoor |
Mounting type | Wall-mounted |
Operating temperature | -40 - 75 °C |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 0.60 m |
Width | 0.02 m |
Height | 1 m |
Weight | 550 g |
Length | 77 cm |
Width | 12 cm |
Height | 6 cm |
Weight | 820 g |
Specifications may include unverified machine translations.
