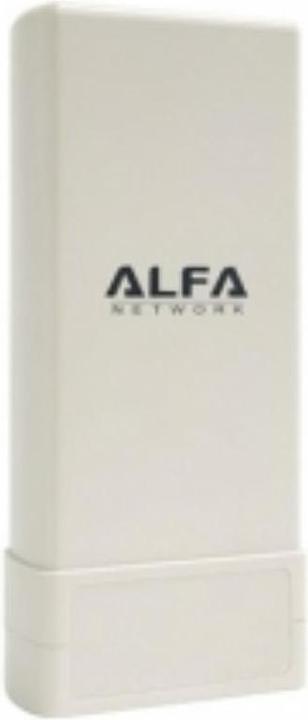

Alfa Network WISP-NSR - 11b/g/n Outdoor CPE, 2.4GHz

Alfa Network - WISP-NSR 11b/g/n Outdoor CPE

WISP-NSR is a low-cost 802.11n outdoor access point/customer premises equipment (AP/CPE) operating in the 2.4 GHz band and compliant with the IEEE 802.11b/g standard. It features a built-in 9 dBi high-gain panel antenna, making it suitable for both CPE and point-to-point (PTP) environments without the need for an external antenna. WISP-NSR supports passive Power over Ethernet (PoE) for quick and easy installation without environmental limitations.

Features

• High-speed data rates: Provides faster data rates of up to 150 Mbps and is compatible with legacy 802.11b/g equipment.

• Advanced robust security firewall: Includes Stateful Packet Inspection (SPI) to protect the internal host from hacker attacks. Wireless security features comprehensive options including WPA/WPA2 PSK.

• Feature-rich: Supports WDS, dual SSIDs, static routing, Quality of Service (QoS), and more.

Standard: IEEE 802.11b/g/n

Operation modes:

• Router

• Bridge

• Wireless ISP

Antenna: 9 dBi panel antenna

Frequency band: 2.400 ~ 2.484 GHz

Security:

• 64/128 bit WEP

• WPA (TKIP with IEEE 802.1x)

• WPA2 (AES with IEEE 802.1x)

• WPA Mixed

Data rates:

• 802.11n (40 MHz): up to 150 Mbps

• 802.11n (20 MHz): up to 72 Mbps

• 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

• 802.11b: 11, 5.5, 2, 1 Mbps

Sensitivity:

• 802.11b: -90 dBm

• 802.11g: -75 dBm

• 802.11n: -71 dBm

Interface:

• WAN x1

• LAN x1

TX power: 20 dBm

Power source: 12 V passive PoE

Operating temperature: -20°C ~ 60°C

Storage humidity: 10% ~ 90% (non-condensing)

Dimensions: 93 x 70 x 26 mm

Weight: 74 g.
