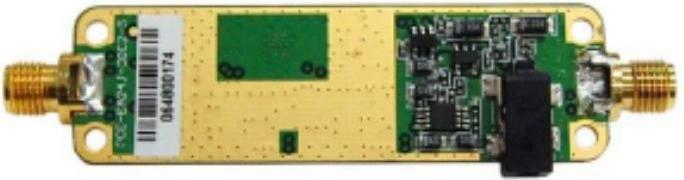

Alfa Network APA05MD - 800 mW Bi-Directional Booster Module

Alfa Network APA05MD - 800 mW Bi-Directional Amplifier Module

• 4x Coverage: The APA05MD increases coverage by four times compared to a standard Wi-Fi access point.

• Suitable for Wi-Fi enthusiasts and developers: Status indicators and RP-SMA connectors on both sides of the PCB provide developers with versatility.

• Maximizes weak signals: It not only amplifies the output signal but also has a reception gain of 20 dBm. It can also be used for analog CCTV applications.

• Galvanized SMA connector: Allows connection to a 2.4-2.5 GHz source and is compatible with most Wi-Fi antennas.

• Power source required: Requires a 5 V DC 500 mA max regulated power supply.

• Frequency: 2.4 ~ 2.5 GHz

• Signal type: DSSS/OFDM

• TR switching time: < 1 second

• RX max input power: -10 dBm

• RX max gain: 13 dB

• TX max linear output: 500 mW / +27 dBm

• TX max gain: 13 dB

• TX input power: 20 dB

• DC supply: 5 V/500 mA

• DC socket dimensions: 2.7 x 0.65 x 8.5 mm (+/-0.5 mm)

• Status LED: PWR (green), TX (red), RX (amber)

• AP connector type: RP-SMA socket

• Antenna connection type: RP-SMA socket

• Operating temperature: -0°C ~ +50°C

• Dimensions L*W*H: 60 x 17.77 x 8 mm (+/-0.5 mm)

• Weight: 7.30 g.
