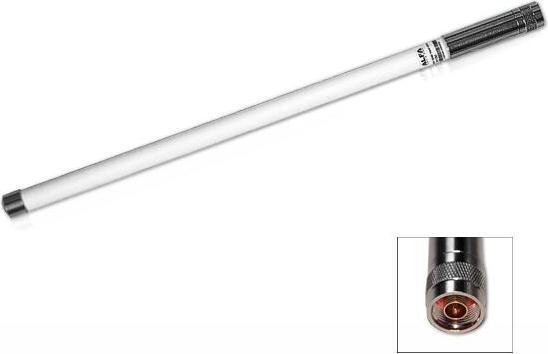

Alfa Network AOA-5810M - 802.11a 10 dBi Omni Outdoor Antenna
The AOA-5810M is designed for the 5.8 GHz ISM band, supporting 5.1 to 5.9 GHz, and provides superb performance in IEEE 802.11a Wi-Fi applications.
Features:
- Superior performance
- Lightweight
- All weather operation
- Installed for vertical DC short lightning protection
- RoHS compliant
- Can be installed for either vertical or horizontal polarization
Application:
- 5.1 – 5.9 GHz ISM band
- 5.3 GHz band applications
- 5.4 GHz band applications
- 5.8 GHz UNII applications
- IEEE 802.11a wireless LAN
- Unlicensed European 5.4 GHz band applications
- 5.8 GHz wireless video systems
- WiMAX technology
Model: AOA-5810M
Frequency: 5.1-5.9 GHz
VSWR: 1.5
Gain: 10 dBi
Polarization: Vertical
Power handling: 50 Watts
Impedance: 50 ohms
Beamwidth: H: 360°/V: 13°
Connector: N male
Operating temperature: -40°C to +80°C
Dimension (mm x mm): 460 x 17
Mounting: 20 to 23 mm
Weight: 200 g.
Antenna type | Mobile radio antenna, WLAN Antenna |
Antenna connection | N-Type |
Application range | Outdoor |
Operating temperature | -40 - 80 °C |
Item number | 21599181 |
Manufacturer | Alfa Network |
Category | Network antenna |
Manufacturer no. | AOA-5810M |
Release date | 2.8.2022 |
Antenna type | Mobile radio antenna, WLAN Antenna |
antenna reception | 5G |
Antenna gain | 10 dBi |
Antenna connection | N-Type |
Application range | Outdoor |
Operating temperature | -40 - 80 °C |
CO₂ emissions | 13.25 kg |
Climate contribution | CHF 0.31 |
Length | 0.02 m |
Width | 0.46 m |
Height | 0.02 m |
Weight | 200 g |
Length | 48.40 cm |
Width | 3.60 cm |
Height | 4 cm |
Weight | 247 g |
