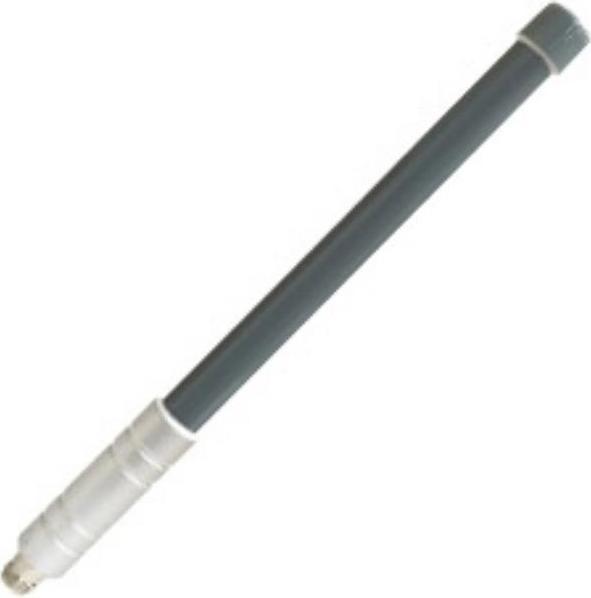

Alfa Network AOA-4G-5F - 4G Omni Antenna 698-960 MH/1710-2700 MHz, 4/5 dbi, N (f)

The AOA-4G-5F is a powerful 4G omni antenna designed for the frequency range of 698 to 960 MHz and 1710 to 2700 MHz. With a gain of 4/5 dBi, this antenna provides excellent signal strength and quality. It is equipped with an N connector and is ideal for various applications in network technology. The antenna is intended for mast mounting and can be installed on masts with a diameter of 30 to 50 mm. Its robust construction allows for operation in a wide temperature range of -40 °C to 80 °C, making it particularly versatile and reliable. Additionally, the antenna is DC grounded to ensure effective lightning protection. With a horizontal beamwidth of 360° and a vertical beamwidth of 16°, the AOA-4G-5F offers comprehensive coverage, making it an excellent choice for enhancing mobile connectivity.

• Omni-directional pattern with 360° horizontal beamwidth
• Operating temperature range of -40 °C to 80 °C
• DC grounded for effective lightning protection
• Maximum input power of 100 W
• Robust construction for wind resistance up to 60 m/s.
