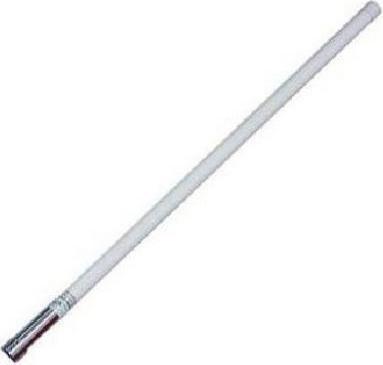

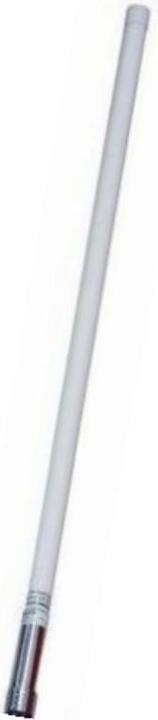

Alfa Network AOA-2410M - 2.42.5 GHz 10 dBi Mesh Omni Antenna

ALFA Network AOA-2410M - 2.4~2.5 GHz 10 dBi Mesh Omni Antenna

The AOA-2410M antennas are professionally designed and manufactured with the highest industrial quality at the lowest possible price. The AOA-2410M is designed for the 2.4 GHz ISM band, supports 2.4 to 2.5 GHz, and offers excellent performance in IEEE 802.11b/g Wi-Fi and Bluetooth applications. The connection of the AOA-2410M to the AP is made via the integrated N connector.

Applications:

• 2.4 - 2.5 GHz ISM band
• IEEE 802.11b, 802.11g, 802.11n wireless LAN
• Directional and multipoint applications
• Bluetooth
• Public wireless hotspot
• WiFi, RFID
• Wireless video systems

Features:

• Outstanding performance
• Lightweight
• All-weather operation
• DC short circuit protection against lightning strikes
• Mounted for vertical applications
• Model: AOA-2410M
• Frequency: 2.4-2.5 GHz
• VSWR: 1.5
• Gain: 10 dBi
• Polarization: Vertical
• Power handling: 50 Watts
• Impedance: 50 Ohms
• Beam width: H: 360°/ V: 12°
• Connector: N connector
• Operating temperature: -40°C ~ +80°C
• Dimensions: 770 x 17 mm
• Mounting: 20 ~ 23 mm (1.2 ~ 1.75 inches)
• Weight: 190 g.
