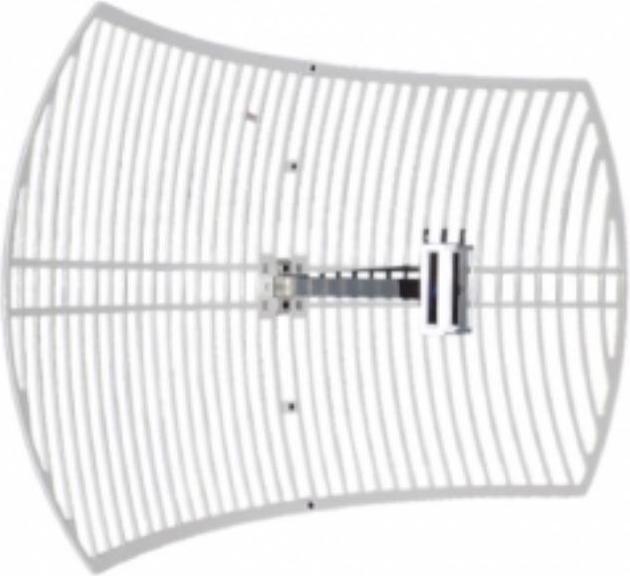

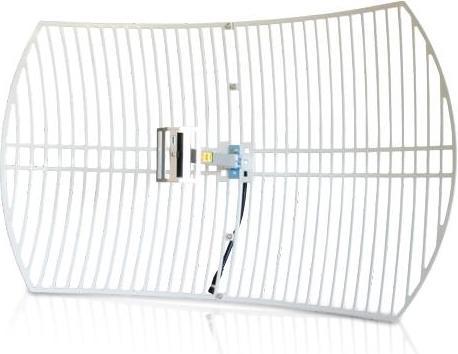

Alfa Network AGA-2424T - Square Grid Antenna 2 4dBi, 2.4 GHz

Alfa AGA-2424 - Long-range WLAN 24 dBi, 2.4 GHz outdoor grid antenna

The AGA-2424 antenna has been professionally designed to offer high performance standards at a low price.

The AGA-2424 is suitable for the 2.4 GHz ISM band, supports the frequency range from 2.4 to 2.483 GHz, and enables use in IEEE 802.11b/g wireless/Bluetooth applications. The antenna includes the necessary mounting tools for mast installation, along with the two grid halves.

The package includes mounting materials.

Features:

• Outstanding performance
• Lightweight
• All-weather operation
• Lightning protection
• Includes mounting materials

Applications:

• 2.4 - 2.5 GHz ISM band
• IEEE 802.11b, 802.11g, 802.11n wireless LAN
• Directional and multipoint applications
• Bluetooth
• Public WLAN hotspot
• Wi-Fi, RFID
• Wireless video systems

Delivery includes:

• 1x 2.4 GHz outdoor grid antenna 24 dBi
• Mast mount, mounting kit
• Frequency: 2.4-2.5 GHz
• VSWR: 1.5
• Gain: 24 dBi
• Polarization: Vertical or horizontal
• Power consumption: 100 watts
• Impedance: 50 ohms
• Beam width: H: 10°/V: 14°
• Connector: N female
• Operating temperature: -40°C to +85°C
• Dimensions (m x m): 0.6 x 0.9
• Mounting: 32 to 45 mm
• Weight: 2500 g.
