Product details

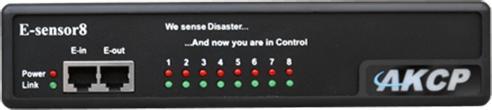

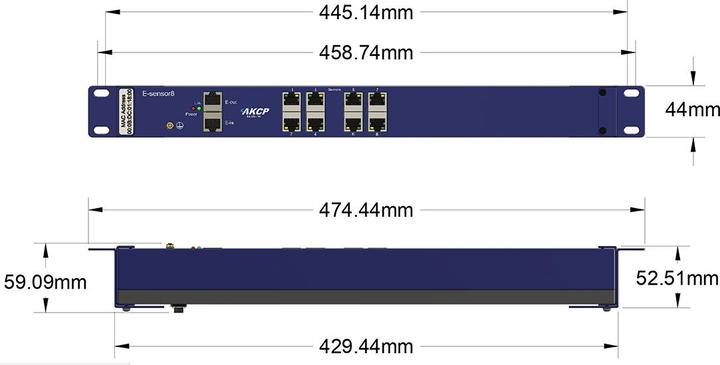

The E-Sensor8 is an expansion module with 8 intelligent RJ-45 sensor ports that is connected to one of the 4 RJ-45 expansion ports on the front of the securityProbe 5E base units. The connection is made via a standard CAT5 LAN cable. The E-Sensor8 can also be connected in series via the E-Out/E-In connections of other expansion cards. The E-Sensor8 is available in a 1U rack version with standard rack brackets or in a short DIN rail version. The product code for this version is E-IS8N-DIN. Full connectivity Any sensor from AKCP's complete line of smart sensors can be connected to the smart sensor ports on the back of the device. 16 LEDs on the front indicate the status of each sensor, 8x red for status and 8x green for online. The expansion boards can be linked together via the input (E-in) and output (E-out) connections on the device. These are also RJ-45 connections that are connected with a standard CAT5 cable. These E-boards can be extended from the securityProbe 5Es base unit or from each other up to 300 metres, or approximately 1000 feet. SCOPE OF DELIVERY: AKCP - E-IS8N-DIN.
