Akasa A-ATN01-BK 2 dBi

Wi-Fi
Ratings
Delivered between Wed, 6.8. and Thu, 14.8.
3 items ordered
Free shipping starting at 50.–

Product details

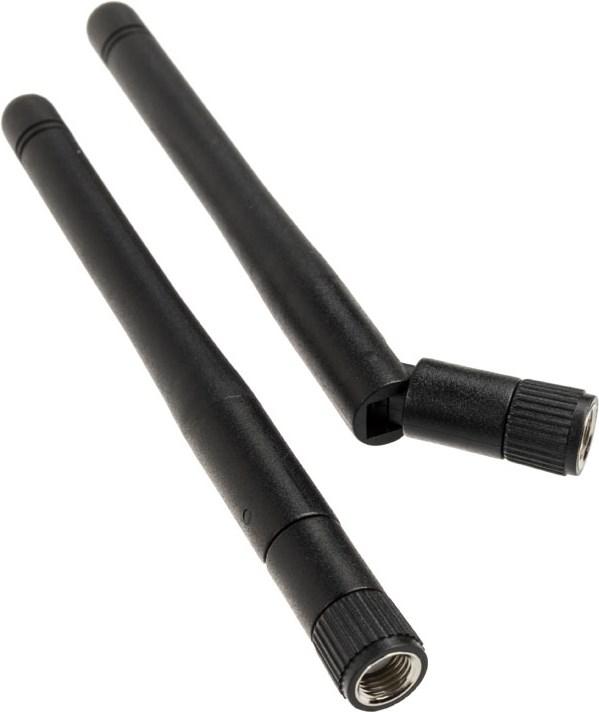

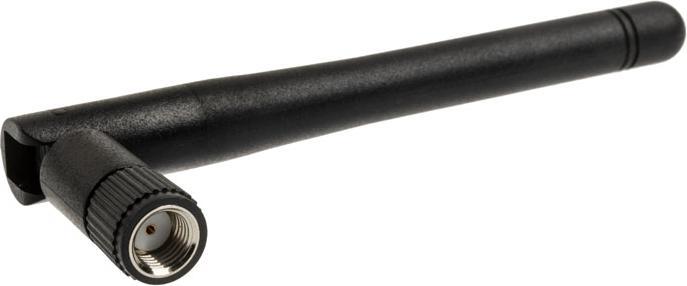

This black antenna comes in a double pack and can be connected to WiFi devices with an RP-SMA connector to receive and transmit signals. The antennas are rotatable and feature a tilt joint. The tri-band antennas support transmissions in the 2.4, 5.2, and 5.8 GHz ranges.

Technical details:

  • Length: 87 mm
  • Weight: 9 g
  • Color: Black
  • Connector: RP-SMA screw connector
  • Polarization: Vertical
  • Frequencies: 2.4 / 5.2 / 5.8 GHz
  • Antenna gain: 2 dBi
  • VSWR: ≤ 2
  • Impedance: 50 Ohm
  • Operating temperature: -20 °C to +65 °C.

Key specifications

Antenna type
WLAN Antenna
Antenna connection
RP-SMA
Wi-fi frequency
2.4 GHz
Item number
16539218

General information

Manufacturer
Akasa
Category
Network antenna
Manufacturer no.
A-ATN01-BK
Release date
1.9.2021
Sales rank in Category Network antenna
13 of 1403

Antenna properties

Antenna type
WLAN Antenna
antenna reception
Wi-Fi
Antenna gain
2 dBi
Antenna connection
RP-SMA
Wi-fi frequency
2.4 GHz

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
0.09 m
Width
0.11 m
Height
0.11 m
Weight
9 g

Package dimensions

Length
16.20 cm
Width
8.60 cm
Height
2.10 cm
Weight
17 g
