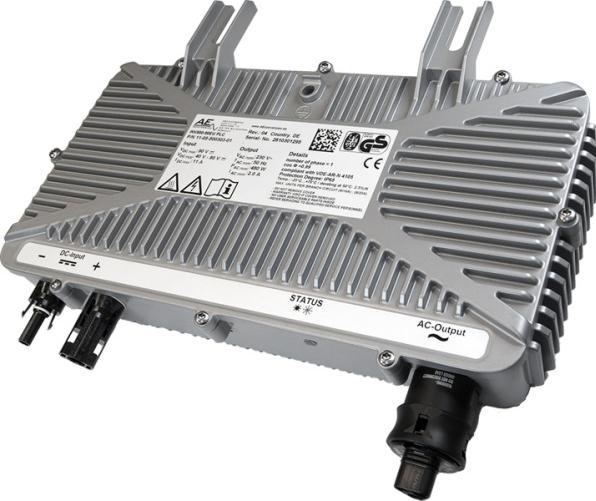

AEconversion INV500-90EU PLC

The micro-inverter is connected directly behind one or two modules and converts the generated direct current into grid-compliant alternating current. The individual conversion at each module allows for optimal utilization of solar energy. In systems with micro-inverters, the modules operate independently of each other, ensuring the highest yield. By performing Maximum Power Point Tracking (MPPT) at the modular level, each inverter can harvest the maximum possible power from each module while minimizing the effects of shading and module deviations.

The INV500-90 PLC micro-inverter operates with a power output of up to 620 W at a maximum PV input voltage of 90 V.

Technical Data:
Type: INV500-90 PLC
Input Data - PV
Maximum PV Power: 500 W
Maximum DC Voltage: 90 V
Min/Max Start Voltage: 40 V / 90 V
MPP Range: 40 V to 80 V
Maximum DC Current: 11 A

Output Data - AC
AC Rated Voltage: 230 V
AC Voltage Range: 184 V to 264 V
AC Rated Power: 480 W
Rated Frequency: 50.0 Hz
Frequency Range: 47.5 Hz to 51.5 Hz
Rated Current: 2.4 A
Power Factor: > 0.99
Communication Options: Powerline

Efficiency
Maximum Efficiency: 95 %
European Efficiency: 94 %
MPP Efficiency: 99.8 %

Mechanical Data
Operating Temperature Range: -25 °C to +70 °C
Night Power Consumption: 30 mW
Max Operating Altitude Above Sea Level: 2000 m
DC Connection: MC4 compatible
Dimensions (WxHxD): 314 mm x 267 mm x 66.5 mm
Weight: 2.5 kg
Cooling: Natural Convection
Enclosure Material: Aluminum
Enclosure Protection Class: IP65

Standards
Product Safety: IEC 62103:2003, IEC 62109-1:2010, IEC 55011B, EN 50178:1997
EMC: FCC Part 15 Class B
ENS integrated according to VDE AR-N 4105
Protection Class: Class I

Order the 230VAC cable connection socket separately.
