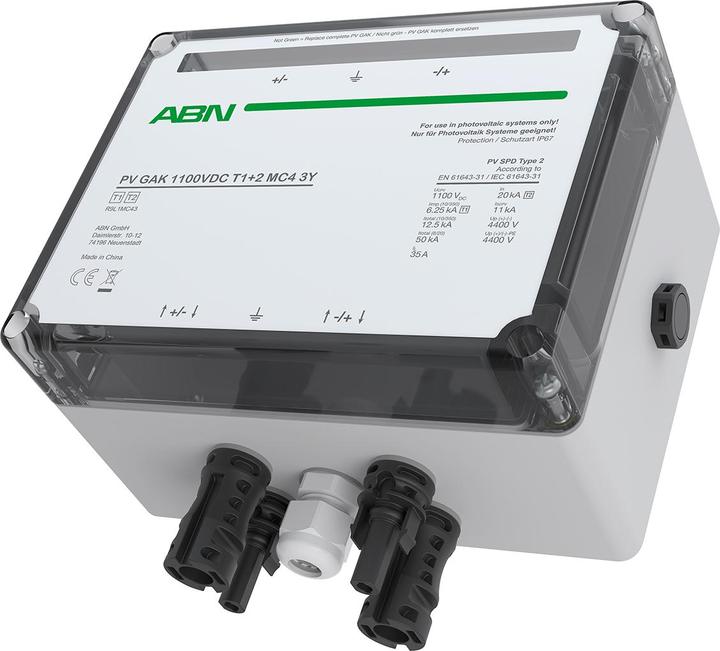

ABN PV generator junction box

Ratings
BrandMore from ABN
Currently out of stock
Free shipping starting at 50.–

Product details

ABN PV GAK combiabl. R9L1MC43

Manufacturer: ABN
Designation: PV GAK combiabl.
Type: R9L1MC43
Number of inputs: 1
Max. voltage range DC: 1100 V
Voltage measuring range DC: 1100 V
Width: 200 mm
Height: 105 mm
Depth: 170 mm
String fuse: without
Material: Plastic
Protection class (IP): IP67
Impact resistance: IK08
Fuse type: other
For fuse size: other
Fuse rating input: 35 A
Test class type 1: yes
Test class type 2: yes
Test class type 3: no
Communication protocol: other
Communication bus: other
Monitoring function: no
Operating temperature: -40 to 85 °C
Suitable for max. current of the main contact unit: 35 A
Output voltage: 1100 V
Max. output current: 35 A
Output current: 35 A
Colour: grey
Number of cable entries: 1
Type of entry: other

ABN PV GAK Kombiabl. R9L1MC43: more details
Generator junction box (GAK) for inverters with 1 MPP tracker, protection of the DC side by means of integrated combined arrester type 1+2, connection by means of MC4 connector, IP67, Ucpv = 1100V, Iimp/Itotal = 6.25kA/12.5kA, In/Imax = 20kA/40kA.

Key specifications

input voltage
1100 V
Output voltage
1100 V
Power output
1100 W
Voltage transformer type
Solar voltage transformer
Length
17 cm
Width
20 cm
Height
10.50 cm
Item number
33822693

General information

Manufacturer
ABN
Category
Power inverters
Manufacturer no.
R9L1MC43
Release date
17.5.2023

Colour

Colour
Grey
Exact colour description
Grey

Voltage Transformer Properties

Voltage transformer type
Solar voltage transformer
input voltage
1100 V
Output voltage
1100 V
Power output
1100 W
Electric current output
35 A

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
17 cm
Width
20 cm
Height
10.50 cm
