Product details

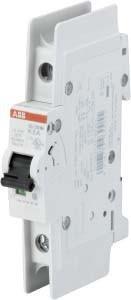

ABB Stotz S&J Automatic Circuit Breaker SU201M-C5 Manufacturer :ABB Stotz S&J Designation :Automatic Circuit Breaker 10kA,C 5A,1P UL489 Type :SU201M-C5 Installation depth :69 mm Tripping characteristic :C Number of poles (total) :1 Number of fused poles :1 Rated current :5 A Rated voltage :277 V Rated insulation voltage Ui :440 V Rated impulse withstand voltage Uimp :4 kV Rated breaking capacity Icn to EN 60898 at 230 V :11.2 kA Voltage type :AC/DC Rated breaking capacity Icu to IEC 60947-2 at 230 V :15 kA Rated breaking capacity Icu to IEC 60947-2 at 400 V :15 kA Frequency :50..60 Hz Energy limitation class :3 Flush mounting :no Switching neutral conductor :no Overvoltage category :3 Pollution degree :3 Additional devices possible :yes Width in pitch units :1 Protection class (IP) :IP20 Ambient temperature during operation :-25..55 °C Connectable conductor cross-section stranded :0.75..25 mm² Connectable conductor cross-section solid :0.75..35 mm² Explosion-proof :no ABB Stotz S&J automatic circuit-breaker SU201M-C5: further details The automatic circuit-breakers of the SU 200 M series protect cables and wires against overload and short-circuit according to DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0660-101 or IEC/EN60947-2 and UL489 or CSA 22.2 No. 5. Their patented connection terminal ensures simple and safe contacting and handling by means of a pressure plate. For better visibility when wiring, the connection opening for cables is above the connection opening for the phase bar. Conductor cross-sections of up to 35 mm² can be connected directly to the unit via the terminal block with insulation in protection class IP20. The extensive range of accessories offers you everything you need for your installation tasks. The combination of approvals according to UL489, CSA 22.2 No. 5 and IEC/EN60947-2 make this a unit that can be used worldwide for high demands and is subjected to three intensive tests for quality and performance before delivery. , EAN: 4016779930802.
