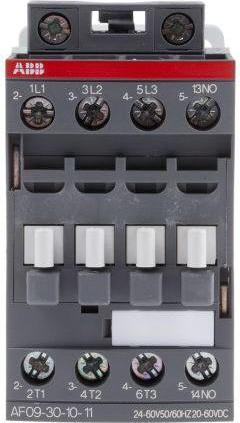

ABB STOTZ-KONTAKT Contactor 24-60 50/60 20-60VDC AF09-30-10-11

ABB Stotz S&J Contactor AF09-30-10-11 Manufacturer: ABB Stotz S&J Designation: Contactor 24-60 50/60 20-60VDC Type: AF09-30-10-11 Rated control supply voltage Us at AC 50 Hz: 24..60 V Rated control supply voltage Us at AC 60 Hz: 24..60 V Rated control supply voltage Us at DC: 20..60 V Voltage type for actuation: AC/DC Rated operational current Ie at AC-1, 400 V: 25 A Rated operational current Ie at AC-3, 400 V: 9 A Rated operational power at AC-3, 400 V: 4 kW Rated operational power NEMA: 1.4914 kW Suitable for series installation: no Number of auxiliary contacts as normally open: 1 Connection type main circuit: screw connection Number of normally open contacts as main contacts: 3.

The 3-pole AF09 contactors represent a compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, lightly inductive, or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They feature integrated surge protection and do not require additional suppression components. All integrated or retrofittable normally open auxiliary contacts are designed as mirror contacts according to IEC60947-5-1 Annex L. Additional accessories such as time delay relays, wiring aids, and interlocking devices complement the range. Contactors with the coil code -11 are not suitable for connection to 24V DC PLC outputs.
