−13%

ABB SD202/32 Switch-disconnector 2P, 32A 2CDD282101R0032

was CHF28.70
Ratings
BrandMore from ABB
Delivered between Thu, 11.6. and Thu, 25.6.
Free shipping starting at 50.–

Product details

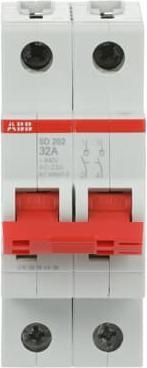

ABB Stotz S&J Load Disconnect Switch SD202/32

Manufacturer: ABB Stotz S&J
Designation: 2-pole load disconnect switch, 32A
Type: SD202/32
Switching Function: Disconnect Switch
Number of Contacts as Normally Open: 2
Number of Poles: 2
Rated Current: 32 A
Rated Voltage: 440 V
Minimum Rated Voltage: 12 V
Rated Short-Circuit Breaking Capacity: 10 kA
Short-Circuit Strength (Icw): 25 kA
Voltage Type: AC/DC
With Indicator Light: No
Color of the Cap: Gray
Width in Modular Units: 2
Installation Depth: 69 mm
Degree of Protection (IP): IP20
Printing/Labeling: Without Forced Disconnection (according to DIN VDE 0113): Yes

The SD 200 expands the proven pro M compact® system with load disconnect switches. The series is available in 1- to 4-pole versions with rated currents from 16 to 63 A and has disconnecting properties according to DIN EN 60947-3. The SD 200 offers new application possibilities with a rated voltage of 253/440 V AC, a conditional short-circuit strength of 25 kA, cylinder-lift terminal with 2 connection points, and back plug protection. The Real CPI switching position indicator clearly indicates the switching status of the device. Its full compatibility with all MCB accessories makes it unique in its field.
EAN: 4016779904148.

Key specifications

Mounting type
Top-hat rail
number of poles
2
Length
69 mm
Width
69 mm

General information

Item number
33833905
Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
2CDD282101R0032
Release date
17.5.2023

Colour

Colour
Multicoloured
Exact colour description
Multicoloured

Circuit Breaker Features

Mounting type
Top-hat rail
number of poles
2
Rated current
32 A
Rated voltage
440 V
voltage type
AC/DC
Protection type (IP code)
IP20

Origin

Country of origin
Bulgaria

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
69 mm
Width
69 mm
Height
88 mm

30-day right of return
24 Months Warranty (Bring-in)
