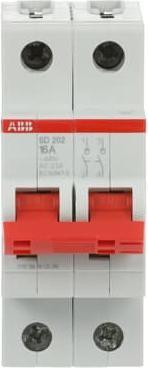

ABB SD202/16 switch-disconnector 2P, 16A 2CDD282101R0016

Ratings
BrandMore from ABB
Delivered between Wed, 15.10. and Sat, 25.10.
Free shipping starting at 50.–

Product details

ABB Stotz S&J Load Break Switch SD202/16

Manufacturer: ABB Stotz S&J
Designation: 2-pole load break switch, 16A
Type: SD202/16
Switching function: Disconnect switch
Number of contacts as normally open: 2
Number of poles: 2
Rated current: 16 A
Rated voltage: 440 V
Minimum rated voltage: 12 V
Rated short-circuit breaking capacity: 10 kA
Short-circuit strength (Icw): 25 kA
Type of voltage: AC/DC
With signal lamp: no
Color of the cap: gray
Width in modular units: 2
Installation depth: 69 mm
Degree of protection (IP): IP20
Printing/Labeling: without forced disconnection (according to DIN VDE 0113): yes

The SD 200 expands the proven pro M compact system with load break switches. The series is available in 1- to 4-pole versions with rated currents from 16 to 63 A and has disconnecting properties according to DIN EN 60947-3. The SD 200 offers new application possibilities with a rated voltage of 253/440 V AC, a conditional short-circuit strength of 25 kA, a cylinder-actuated terminal with 2 connection points, and back protection. The Real CPI switching position indicator clearly indicates the switching state of the device. Its full compatibility with all MCB accessories makes it unique in its field. EAN: 4016779904124.

Key specifications

Circuit breaker type
Circuit breaker
Length
69 mm
Width
20 mm
number of poles
2
Mounting type
Top-hat rail
Item number
33833903

General information

Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
2CDD282101R0016
Release date
17.5.2023

Colour

Colour
Multicoloured
Exact colour description
multicolour

Circuit Breaker Features

Circuit breaker type
Circuit breaker
Mounting type
Top-hat rail
number of poles
2
Tripping characteristic
A
Rated current
16 A
Rated voltage
440 V
voltage type
AC/DC
Rated insulation voltage Ui
440 V
Protection type (IP code)
IP20

Origin

Country of origin
Bulgaria

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
69 mm
Width
20 mm
Height
69 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
